四路 16 V、RRIO 高输出电流运算放大器 14-SOIC -40 to 85
If you need your circuit to perform basic mathematical operations such as addition, subtraction, differentiation, and integration then current feedback amplifier OP amp from Texas Instruments is perfect for you! Its typical dual supply voltage is ±3|±5 V, with a minimum of ±2.5 V and maximum of ±8 V. This op amp has a temperature range of -40 °C to 85 °C. This device utilizes bicom technology. This device uses one or two power supplies. It has 4 channels per chip.
输出电流 75mA @5V
供电电流 800 µA
电路数 4
通道数 4
共模抑制比 72 dB
转换速率 15.0 V/μs
增益频宽积 15.3 MHz
输入补偿电压 4 mV
输入偏置电流 1000 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 24 MHz
增益带宽 15.3 MHz
共模抑制比Min 70 dB
电源电压Max 16 V
电源电压Min 5 V
安装方式 Surface Mount

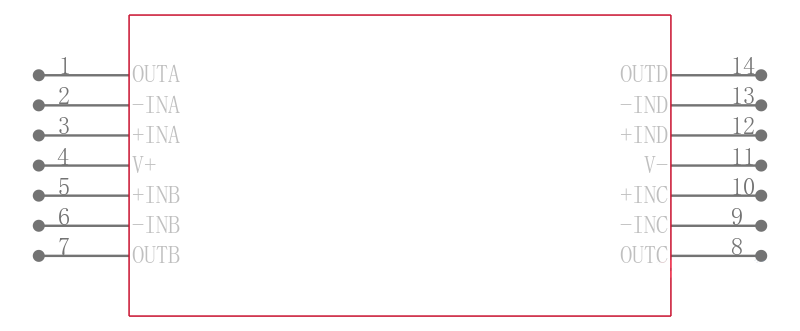

引脚数 14
封装 SOIC-14
长度 8.64 mm
宽度 3.91 mm
高度 1.45 mm
封装 SOIC-14
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM6588MAX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM6588MA/NOPB 德州仪器 | 类似代替 | LM6588MAX/NOPB和LM6588MA/NOPB的区别 |
LM6588MA 德州仪器 | 类似代替 | LM6588MAX/NOPB和LM6588MA的区别 |
LM6588MAX 德州仪器 | 类似代替 | LM6588MAX/NOPB和LM6588MAX的区别 |
