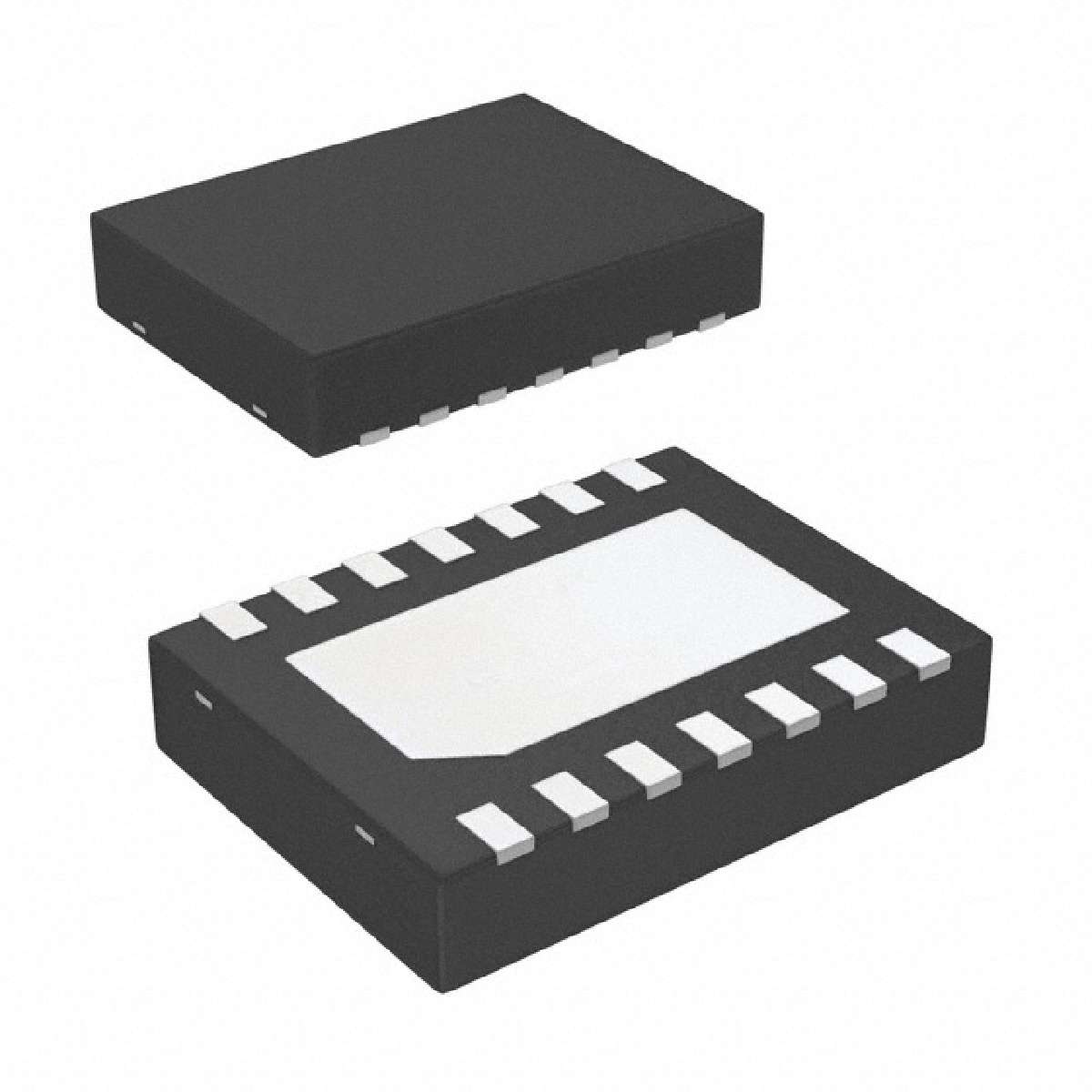

LMH6722QSDX/NOPB

汽车四通道宽带视频放大器 14-WSON -40 to 125

DESCRIPON

The LMH6714/LMH6720/LMH6722 series combine Texas Instruments" VIP10 high speed complementary bipolar process with Texas Instruments" current feedback topology to produce a very high speed op amp. These amplifiers provide a 400MHz small signal bandwidth at a gain of +2V/V and a 1800V/μs slew rate while consuming only 5.6mA from ±5V supplies.

FEATURES

• 400MHz AV = +2V/V, VOUT = 500m VPP −3dB BW

• 250MHz AV = +2V/V, VOUT = 2VPP -3dB BW

• 0.1dB Gain Flatness to 120MHz

• Low Power: 5.6mA

• TTL Compatible Shutdown Pin LMH6720

• Very Low Diff. Gain, Phase: 0.01%, 0.01° LMH6714

• −58 HD2/ −70 HD3 at 20MHz

• Fast Slew Rate: 1800V/μs

• Low Shutdown Current: 500uA LMH6720

• 11ns Turn on Time LMH6720

• 7ns Shutdown Time LMH6720

• Unity Gain Stable

• Improved Replacement for CLC400,401,402,404,406 and 446 LMH6714

• Improved Replacement for CLC405 LMH6720

• Improved Replacement for CLC415 LMH6722

• LMH6722QSD is AEC-Q100 Grade 1 Qualified and is Manufactured on an Automotive Grade

Flow

APPLICATIONS

• HDTV, NTSC & PAL Video Systems

• Video Switching and Distribution

• Wideband Active Filters

• Cable Drivers

• High Speed Multiplexer LMH6720

• Programmable Gain Amplifier LMH6720

• Automotive LMH6722Q
