差分驱动器, RS422/RS485, 4.75V-5.25V电源, SOIC-8
The is a low power differential bus/line Transceiver designed for multipoint data transmission standard RS485 applications with extended common-mode range. The CMOS with Schottky design offers significant power savings over its bipolar counterpart without sacrificing ruggedness against overload or ESD damage. The driver and receiver feature three-state outputs with the driver outputs maintaining high impedance over the entire common-mode range. Excessive power dissipation caused by bus contention or faults is prevented by a thermal shutdown circuit which forces the driver outputs into a high impedance state. I/O pins are protected against multiple ESD strikes of over ±10kV. The receiver has a fail-safe feature which guarantees a high output state when the inputs are left open.
电源电压DC 4.75V min
供电电流 1.8 mA
针脚数 8
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 8

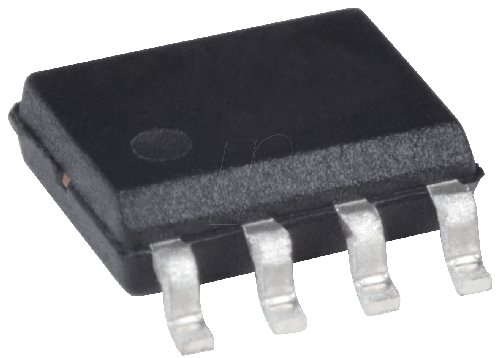

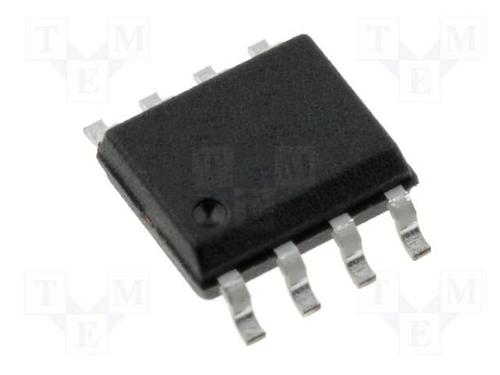

封装 SOIC-8
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Each
制造应用 Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC1485CS8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1485IS8#PBF 凌力尔特 | 类似代替 | LTC1485CS8#PBF和LTC1485IS8#PBF的区别 |
MAX485EPA+ 美信 | 功能相似 | LTC1485CS8#PBF和MAX485EPA+的区别 |
MAX485EESA+ 美信 | 功能相似 | LTC1485CS8#PBF和MAX485EESA+的区别 |
