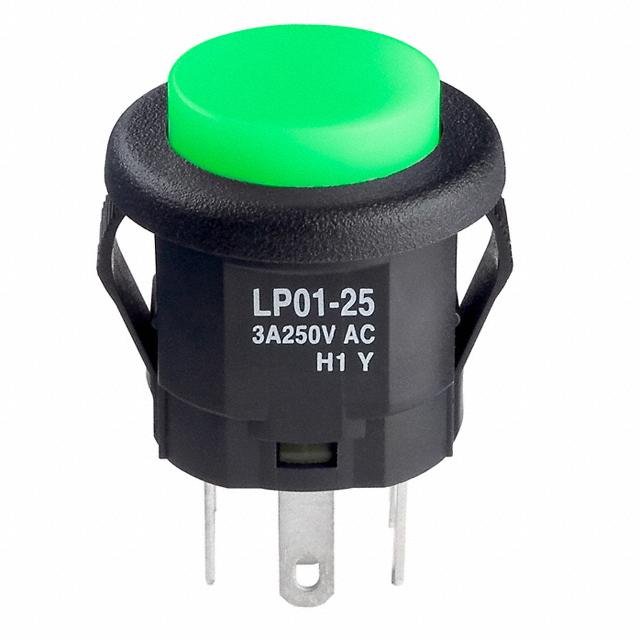

按钮开关 DPDT ON-ON 3A GRN ILLUM SNAP-IN MOUNT
Snap-In Mounting, LP01 Series Short Body Pushbutton Switchs
Smooth, slightly concave surface of cap designed to fit fingertip. Unique design and construction of cap prevents its removal and limits tampring.
立创商城:
LP0125CMKW015FB
艾睿:
Switch Push Button ON ON DPDT Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Allied Electronics:
Switch, Pushbutton, SHORT BODY, DPDT, ON-ON, BRIGHT GREEN LED, WHITE CAP
Powell:
SHORT BODY PUSHBUTTON/ILLUMINATED/PANEL MOUNT
触点电镀 Silver
额定电压DC 30.0 V
额定电流 3 A
绝缘电阻 ≥200MΩ @500VDC
触点类型 DPDT
针脚数 2
接触电阻 ≤50 MΩ
触点额定电流 3.00 A
额定电流Max 3A @250VAC, 30VDC
工作温度Max 50 ℃
工作温度Min -10 ℃
额定电压 125 VAC
接触电阻Max 50 mΩ
安装方式 Snap-In, Quick Connect, Solder Lug
封装 -
长度 20 mm
宽度 20 mm
高度 26.8 mm
封装 -
工作温度 -10℃ ~ 50℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
