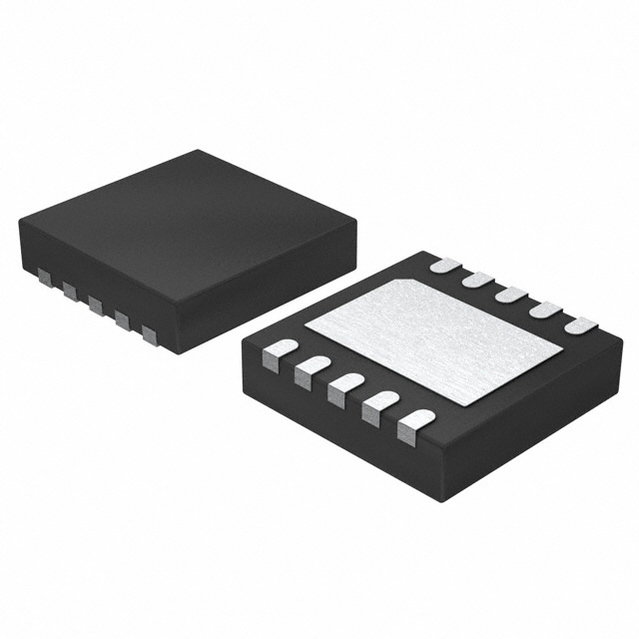

LINEAR TECHNOLOGY LT3497EDDB#TRMPBF 发光二极管驱动器, 2输出, 升压逐步上升, 2.5V-10V输入, 2.3MHz开关, 35V/200mA输出, DFN-10
The is a dual full function step-up DC/DC Converter specifically designed to drive up to 12 white LEDs from a Li-Ion cell. Series connection of the LEDs provides identical LED currents resulting in uniform brightness and eliminating the need for ballast resistors and expensive factory calibration. The two independent converters are capable of driving asymmetric LED strings. Accurate LED dimming and shutdown of the two LED strings can also be controlled independently. The LT3497 features unique high-side LED current sense that enables the part to function as a one wire current source, one side of the LED string can be returned to ground anywhere, allowing a simpler 1-wire LED connection. Traditional LED drivers use a grounded resistor to sense LED current, requiring a 2-wire connection to the LED string. The 2.3MHz switching frequency allows the use of tiny inductors and capacitors.
频率 2.3 MHz
输出接口数 2
输入电压DC 2.50V ~ 10.0V
输出电压 35 V
输出电流 200 mA
针脚数 10
开关频率 2.3 MHz
拓扑结构 Boost
输入电压Max 10 V
输入电压Min 2.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 10V
输入电压 2.5V ~ 10V
安装方式 Surface Mount
引脚数 10

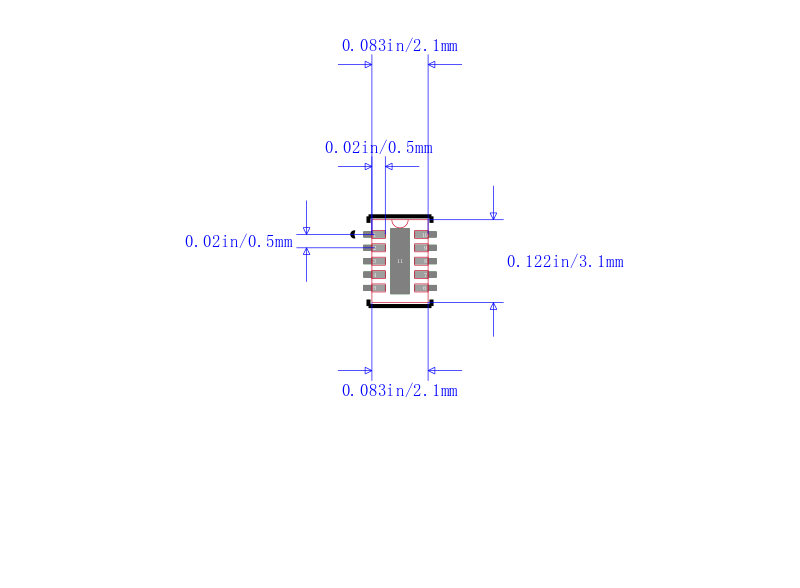

封装 DFN-10
封装 DFN-10
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Audio, 消费电子产品, 音频, 计算机和计算机周边, Computers & Computer Peripherals, 便携式器材, 背光, Consumer Electronics, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3497EDDB#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3497EDDB#TRPBF 凌力尔特 | 完全替代 | LT3497EDDB#TRMPBF和LT3497EDDB#TRPBF的区别 |
