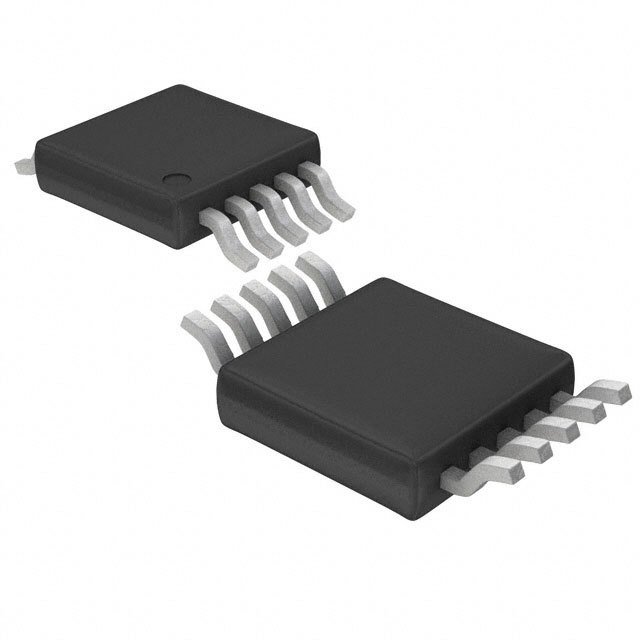

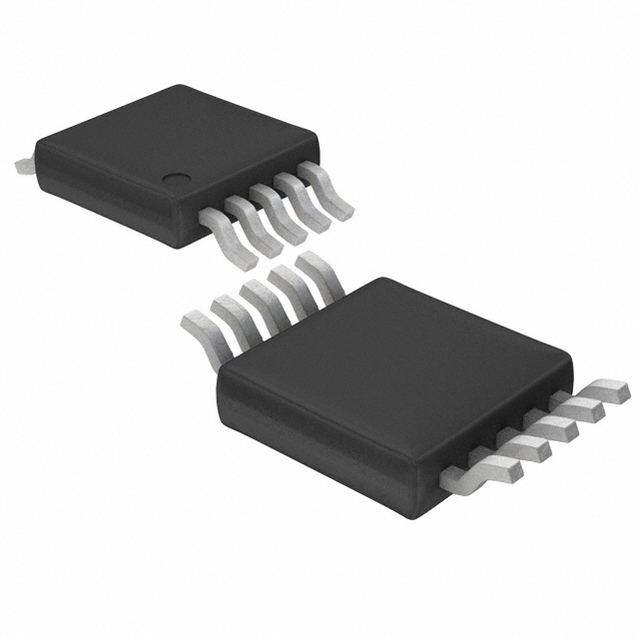

LT6550CMS#PBF

LINEAR TECHNOLOGY  LT6550CMS#PBF  视频放大器, 3 放大器, 90 MHz, 250 V/µs, -40 °C, 85 °C, 60 mA

The is a 3.3V triple high speed Video Amplifier for use with coaxial cable drivers. This voltage feedback amplifier drive double terminated 50 or 75R cables and are configured for a fixed gain of 2, eliminating six or eight external gain setting resistors. The LT6550 feature 110MHz, -3dB bandwidth, high slew rates and fast settling, making them ideal for RGB video processing. The LT6550 triple can be used on either single or split supplies. On a single 3.3V supply, the input voltage range extends from ground to 1.55V and the output swings to within 400mV of the supply voltage while driving a 150R load. These features, combined with the ability to accept RGB video signals without the need for AC coupling or level shifting of the incoming signals, make the LT6550 an ideal choice for low voltage video applications.

.

Input common mode range includes ground

.

Rail-to-rail output

.

Internal resistors for a gain of 2

.

30MHz Flat to 0.25dB

.

3% Settling time of 20ns

.

±10mA Input current
