LV5235V-TLM-H

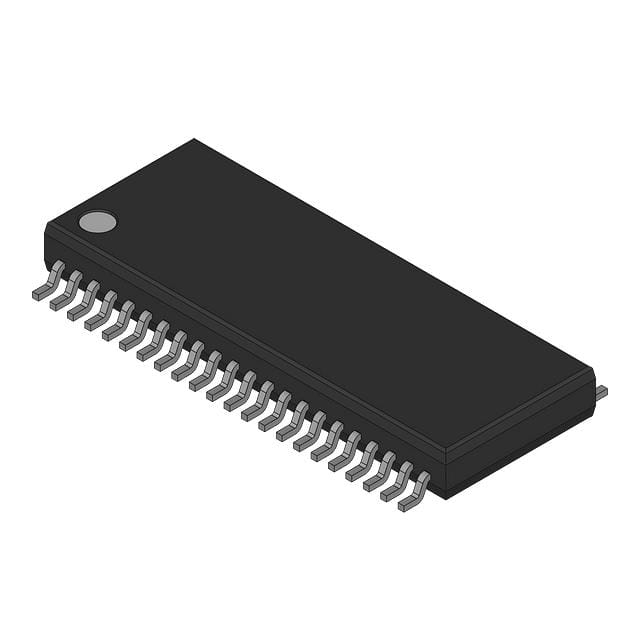

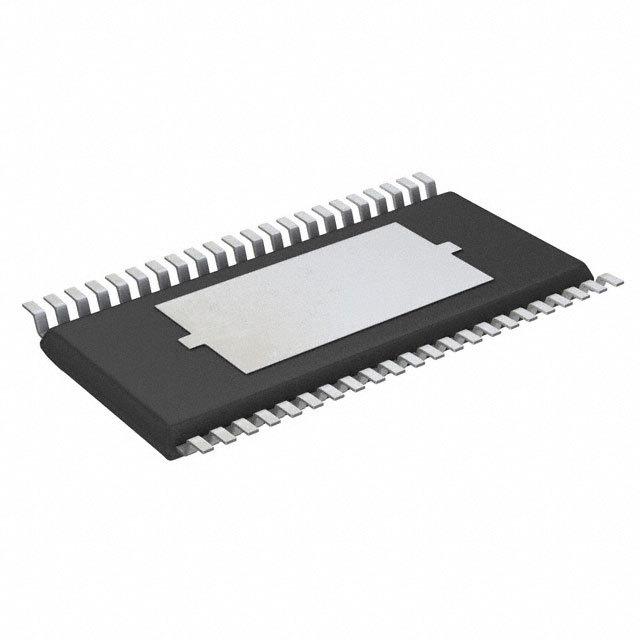

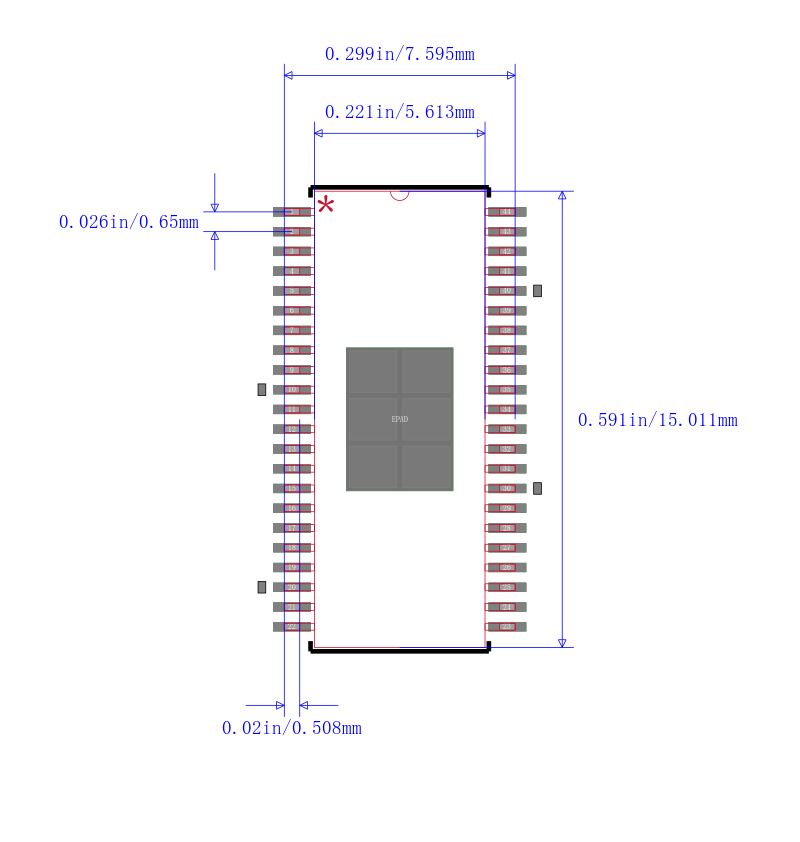

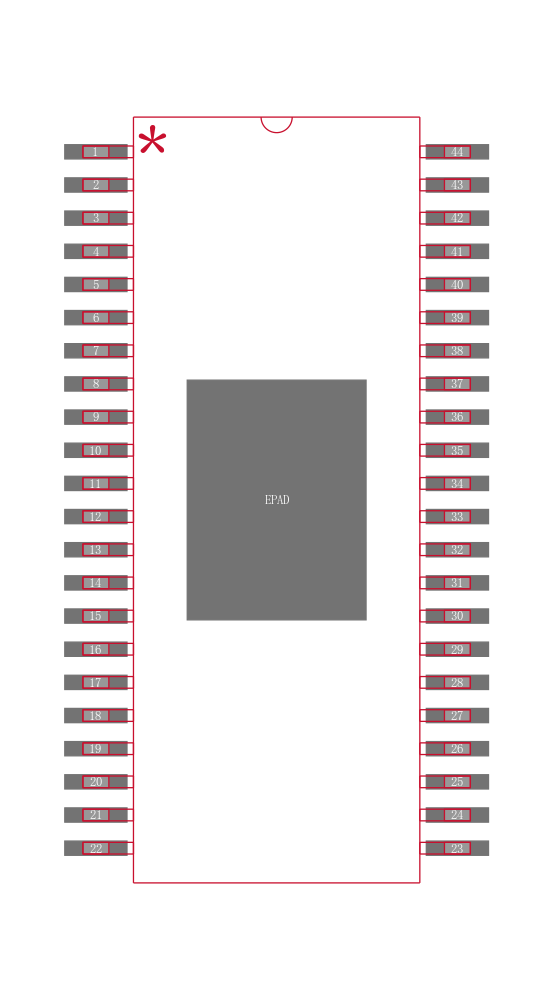

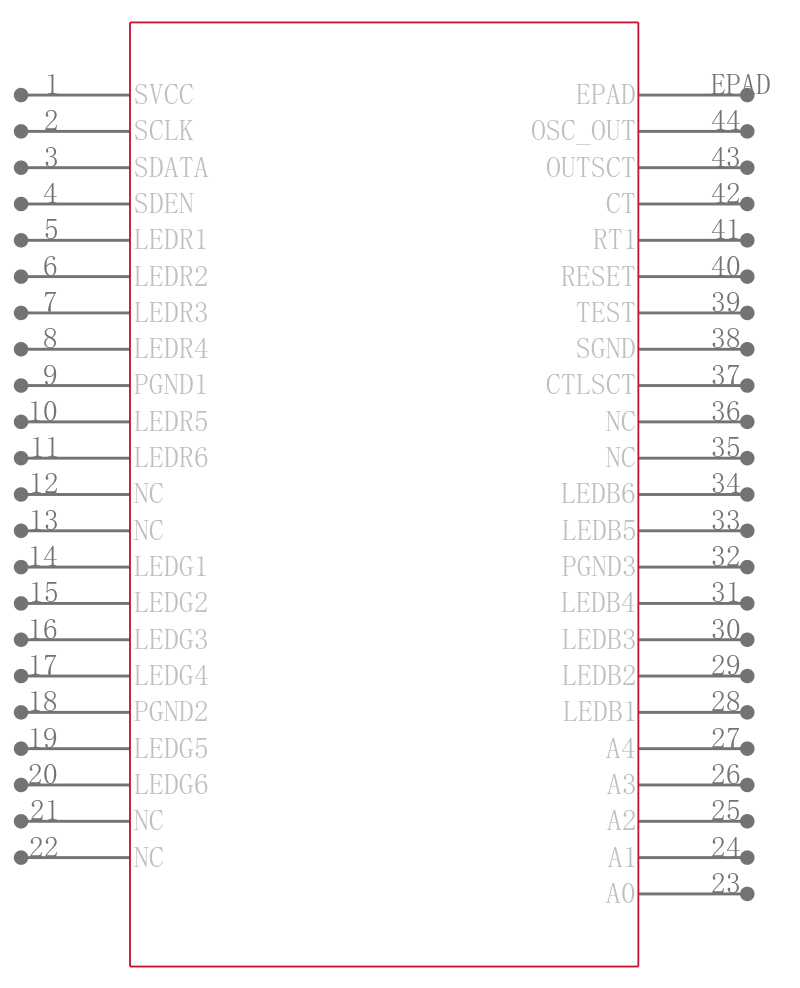

LED DRVR 18Segment 5V 44Pin SSOP-J EP T/R

The LV5235V is a 18-channel LED driver IC that is capable of switching between constant-current output and open drain output. It enables 3-wire serial bus control address designation/IC serial bus control to be set arbitrarily using an external pin. Also possible are 18-channel LED ON/OFF control and the setting of the PWM luminance in 256 steps. The device also has a built-in fade-in/fade-out function. Up to 32 driver ICs can be connected using the slave address setting pins.

Features

---

 |

.

18-channel output constant-current LED driver/open drain output LED driver selected by using an external pin

.

Luminance adjustment using internal PWM control 256 steps

.

Fade-in/fade-out function PWM control priority, supporting synchronous connection

.

Selection of 3-wire/I2C serial bus control signals enabled switching using an external pin

.

Low current consumption

.

Output malfunction protection circuits thermal protection function, UVLO detection protection function
