LC75857WH-E

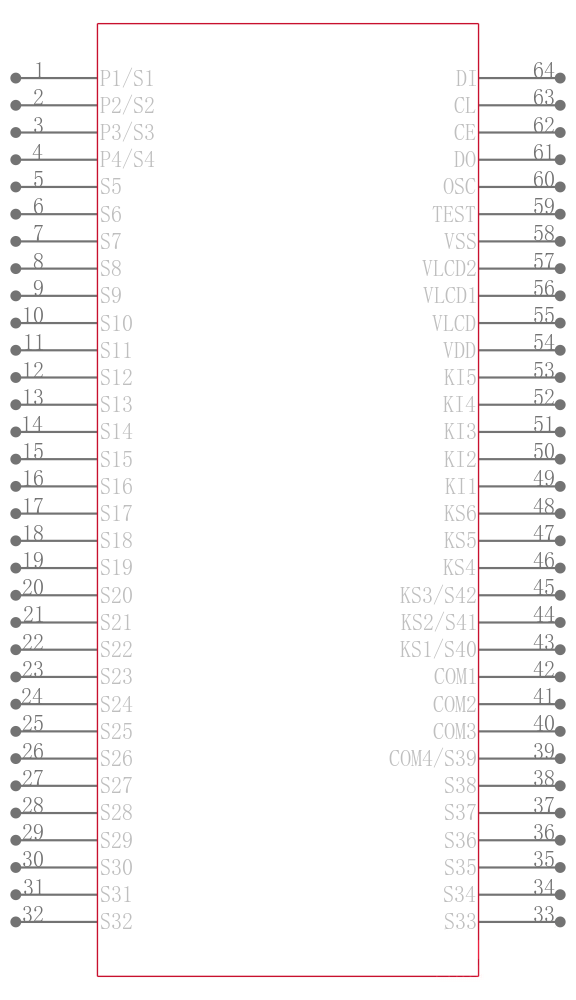

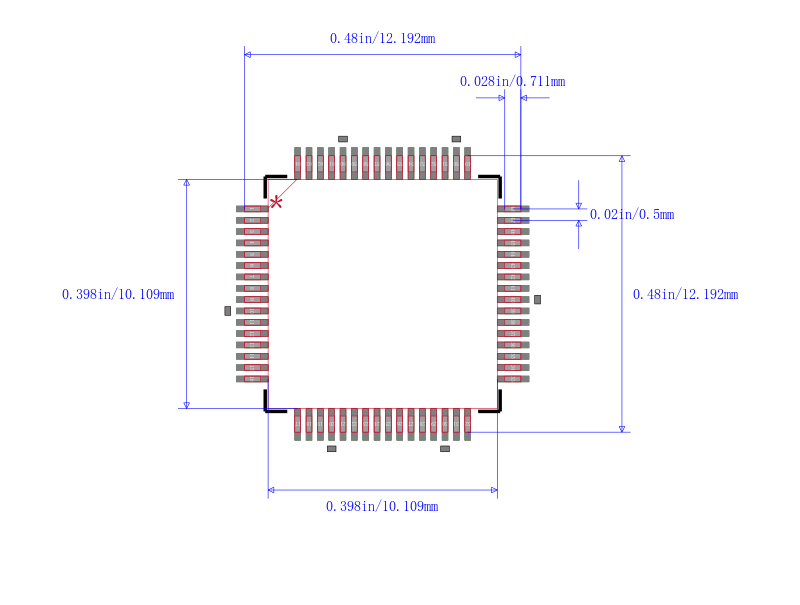

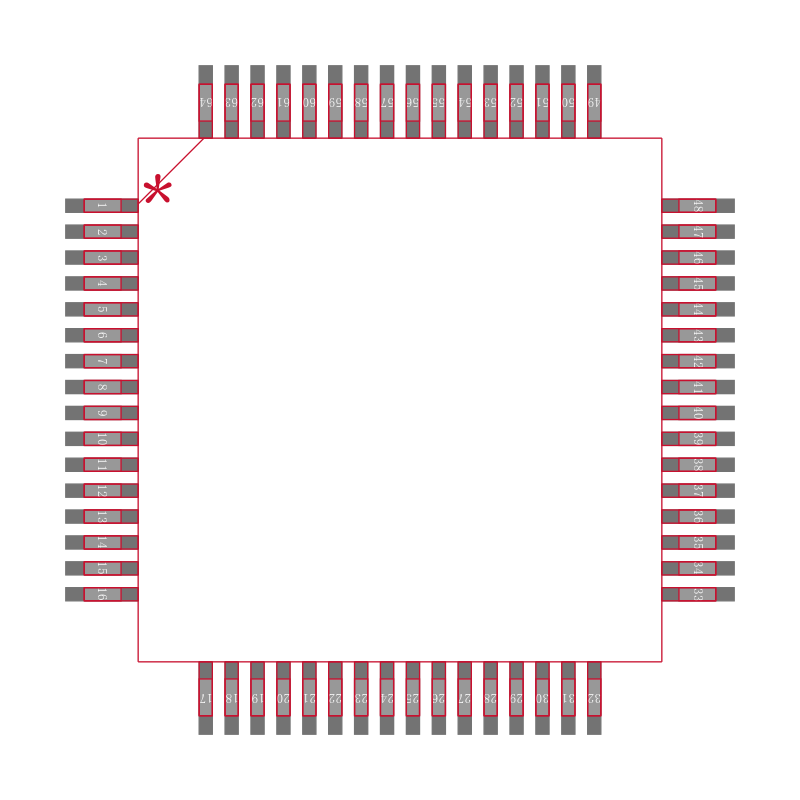

LCD DRVR 3.3V/5V 64Pin SQFP

The LC75857W is a 1/3 duty and 1/4 duty LCD display driver that can directly drive up to 164 segments and can control up to four general-purpose output ports. This product also incorporate a key scan circuit that accepts input from up to 30 keys to reduce printed circuit board wiring.

Features

---

 |

.

Key input function for up to 30 keys A key scan is performed only when a key is pressed.

.

1/3 duty and 1/4 duty drive schemes can be controlled from serial data.

.

1/2 bias and 1/3 bias drive schemes can be controlled from serial data.

.

Capable of driving up to 126 segments using 1/3 duty and up to 164 segments using 1/4 duty.

.

Sleep mode and all segments off functions that are controlled from serial data.

.

Switching between key scan output and segment output can be controlled from the serial data.

.

The key scan operation enabled/disabled state can be controlled from the serial data.

.

Switching between segment output port and general-purpose output port can be controlled from serial data.

.

The common and segment output waveform frame frequency can be controlled from the serial data.

.

Switching between RC oscillator mode and external clock mode can be controlled from the serial data.

.

Serial data I/O supports CCB format communication with the system controller.

.

Direct display of display data without the use of a decoder provides high generality.

.

Independent VLCD for the LCD driver block.

.

Provision of an on-chip voltage-detection type reset circuit prevents incorrect displays.
