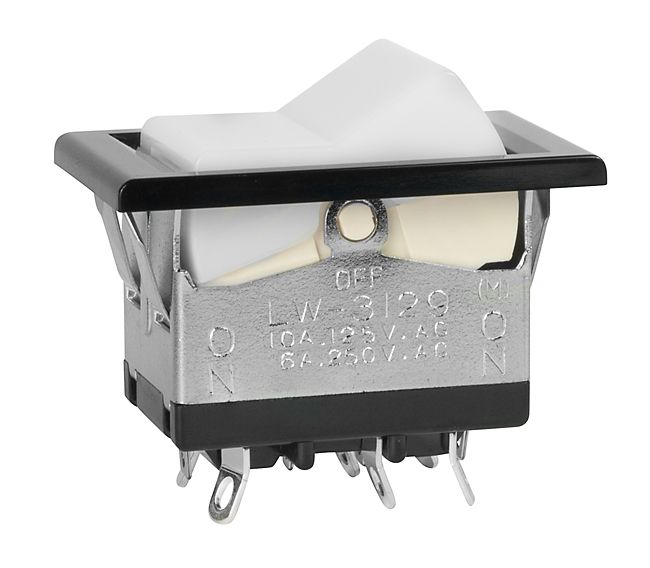

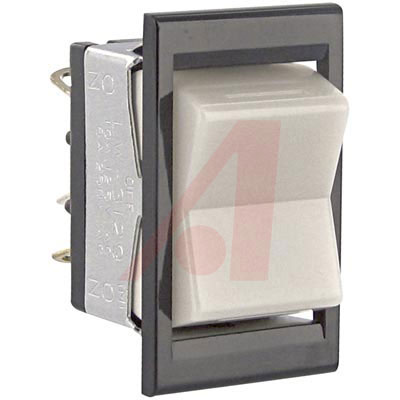

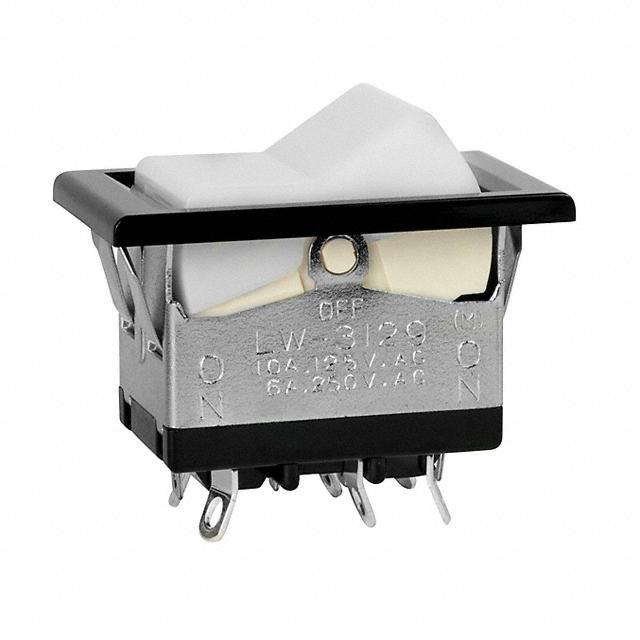

Switch Rocker ON OFF ON DPDT Solder Lug Rocker 10A 250VAC 30VDC 30000Cycles
10 Megohms Max. Contact Resistance, LW Series Power Rated Snap-In Rocker Switches
* Snap-in mounting allows fast, easy installation of using into panel
* Stainless steel retaining clips provide secure mounting over a wide range of panel thickness
* Dual incandescent or neon lamps operate independently of each other
* Front panel relamping
Each half of the rocker face is distinctly illuminated due to partitioned rocker construction and dual lamps.
贸泽:
Rocker Switches ON-OFFON WHITE CAP BLACK BEZEL
艾睿:
Switch Rocker ON OFF ON DPDT Solder Lug Rocker 10A 250VAC 30VDC 30000Cycles
Allied Electronics:
Switch, NON-Illuminated, POWER Rated Rocker, DPDT, ON-OFF-ON, WHITE, SNAP IN
Chip1Stop:
Switch Rocker ON OFF ON DPDT Solder Lug Rocker 10A 250VAC 30VDC 30000Cycles
Powell:
POWER ROCKER/ILLUMINATED/SNAP-IN
触点电镀 Silver
额定电压DC 30 V
接触器类型 Rocker
额定电压AC 250 V
额定电流 10 A
绝缘电阻 ≥200MΩ @500VDC
方向 Vertical
触点类型 DPDT
针脚数 2
接触电阻 ≤10 MΩ
工作温度Max 50 ℃
工作温度Min -20 ℃
额定电压 250 VAC
安装方式 Panel, Snap-In, Screw Terminals
长度 41 mm
宽度 24 mm
高度 37.1 mm
颜色 Black
工作温度 20℃ ~ 50℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
