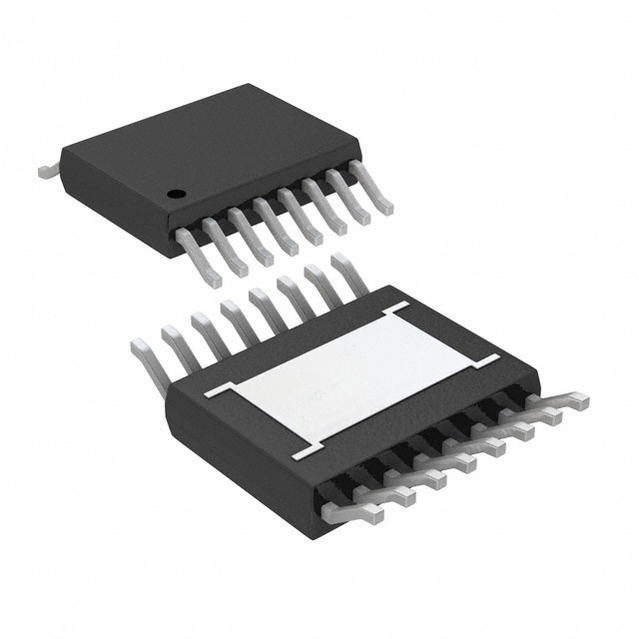

LINEAR TECHNOLOGY LT3755EMSE-2#PBF 发光二极管驱动器, 1输出, 升压, 降压, 降压-升压, 4.5V-40V输入, 1MHz开关, 75V/1A输出, MSOP-16
The is a LED Controller designed to operate as a constant-current source for driving high current LEDs. It drives a low side external N-channel power MOSFET from an internal regulated 7.15V supply. The fixed frequency, current mode architecture results in stable operation over a wide range of supply and output voltages. A ground referenced voltage FB pin serves as the input for several LED protection features and also makes it possible for the converter to operate as a constant-voltage source. A frequency adjust pin allows the user to program the frequency from 100kHz to 1MHz to optimize efficiency, performance or external component size. The LT3755-2 sense output current at the high side of the LED string. High side current sensing is the most flexible scheme for driving LEDs, allowing boost, buck mode or buck-boost mode configuration. The PWM input provides LED dimming ratios of up to 3000:1 and the CTRL input provides additional analogue dimming capability.
频率 100kHz ~ 1MHz
输出接口数 1
输入电压DC 4.50V ~ 40.0V
输出电压 75 V
输出电流 1 A
针脚数 16
开关频率 1 MHz
输入电压Max 40 V
输入电压Min 4.5 V
输出电压Max 75 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 40V
安装方式 Surface Mount
引脚数 16

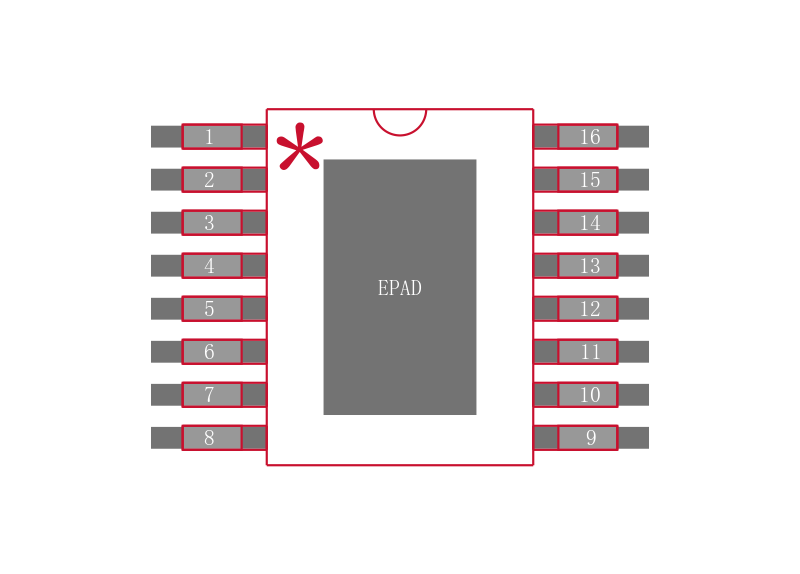

封装 MSOP-16
封装 MSOP-16
工作温度 0℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Each
制造应用 Power Management, LED Lighting, 发光二极管照明, -, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
