LT3598EFE#PBF

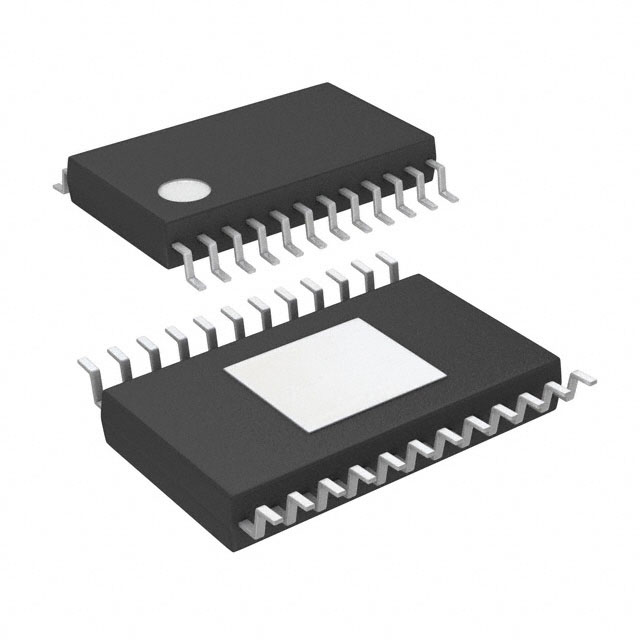

LINEAR TECHNOLOGY  LT3598EFE#PBF  发光二极管驱动器, 6输出, 升压逐步上升, 3.2V-30V输入, 2.5MHz开关, 44V/30mA输出, TSSOP-24

The is a fixed frequency step-up DC/DC Converter designed to drive up to six strings of LEDs at an output voltage up to 44V. LED dimming can be achieved with analogue dimming on the CTRL pin and with pulse width modulation dimming on the PWM pin. The LT3598 accurately regulates LED current even when the input voltage is higher than the LED output voltage. The switching frequency is programmable from 200kHz to 2.5MHz through an external resistor. Additional features include programmable over-voltage protection, switching frequency synchronization to an external clock, LED current derating based on junction temperature and LED temperature, LED string disable control, OPENLED alert pin and output voltage limiting when all LED strings are disconnected.

.

±1.5% Accurate LED current matching

.

Regulates current even when VIN > VOUT

.

Disconnects LEDs in shutdown

.

Programmable open LED protection regulated

.

OPENLED alert pin

.

Programmable LED current derating

.

Synchronizable to an external clock

.

Parallel channels for higher current per LED string

.

Drives six strings of LEDs at up to 30mA
