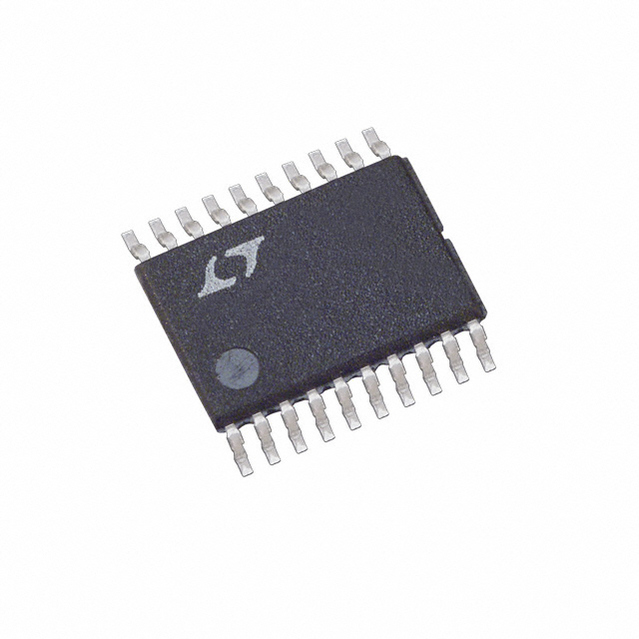

LT3475EFE-1#PBF

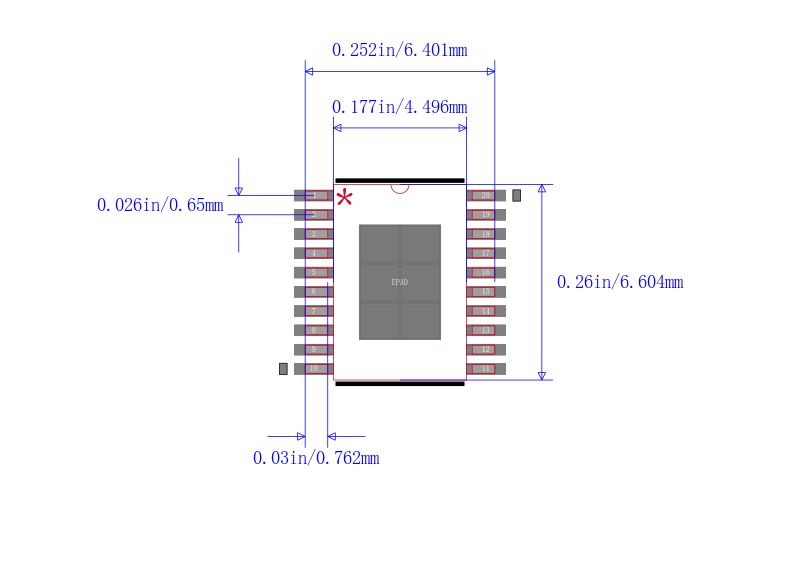

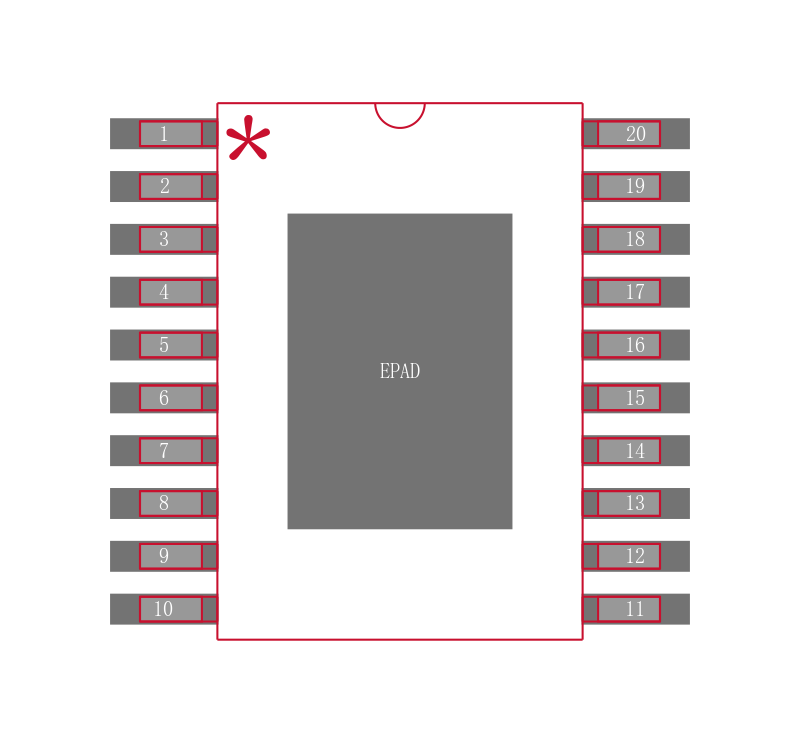

LINEAR TECHNOLOGY  LT3475EFE-1#PBF  发光二极管驱动器, 2输出, 降压逐步下降, 4V-36V输入, 600kHz开关, 1.5A输出, TSSOP-20

The is a dual step-down DC/DC Converter designed to operate as a constant-current source. An internal sense resistor monitors the output current allowing accurate current regulation ideal for driving high current LEDs. The high-side current sense allows grounded cathode LED operation. High output current accuracy is maintained over a wide current range, from 50mA to 1.5A, allowing a wide dimming range. Unique PWM circuitry allows a dimming range of 3000:1, avoiding the colour shift normally associated with LED current dimming. The high switching frequency offers several advantages, permitting the use of small inductors and ceramic capacitors. The constant switching frequency combined with low-impedance ceramic capacitors result in low, predictable output ripple. With its wide input range of 4 to 36V, the LT3475 regulates a broad array of power sources. Current mode PWM architecture provides fast transient response and cycle-by-cycle current limiting.

.

High-side current sense allows grounded cathode LED operation

.

Open LED and short-circuit protection

.

Anti-phase switching reduces ripple

.

Uses small inductors and ceramic capacitors
