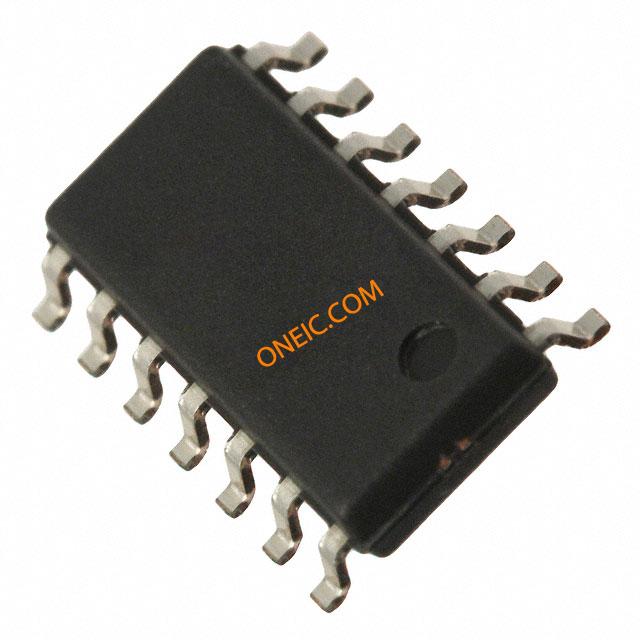

LM339M

FAIRCHILD SEMICONDUCTOR  LM339M  模拟比较器, 四路, 电压, 4, 1.3 µs, 2V 至 36V, ± 1V 至 ± 18V, SOP, 14 引脚

The is a 4-independent Voltage Comparator features single or dual supply operation and common mode input voltage range includes ground. The voltage comparator designed to operate from single power supply over a wide voltage range. This product is general usage and suitable for many different applications.

.

800µA Typical low supply current drain

.

Open collector outputs for wired and connectors

.

25nA Typical low input bias current

.

±2.3nA Typical low input offset current

.

±1.4mV Typical low input offset voltage

.

Low output saturation voltage
