片式电感器（片状线圈），高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type
2.9nH Unshielded Thick Film Inductor 500mA 200mOhm Max 0201 0603 Metric
得捷:
FIXED IND 2.9NH 500MA 200MOHM SM
立创商城:
2.9nH ±0.1nH 200mΩ
艾睿:

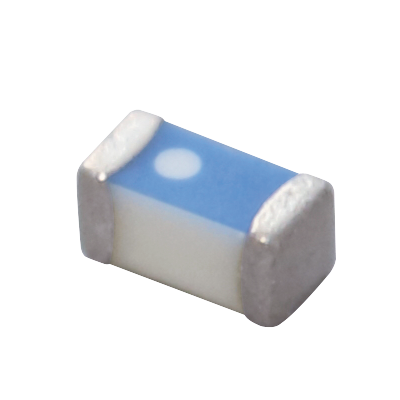

An ideal space-saving electronic component is this rf chip LQP03TN2N9B02D surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device utilizes thin film technology. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 9.5G Hz. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 200m Ohm. It has an inductance of 2.9n H.
安富利:
Ind RF Chip Thin Film 2.9nH 0.1nH 500MHz 14Q-Factor 500mA 0201 Paper T/R
Chip1Stop:
Inductor RF Chip Thin Film 2.9nH 0.1nH 500MHz 14Q-Factor 500mA 200mOhm DCR 0201 T/R
Verical:
Inductor RF Chip Unshielded Thick Film 0.0029uH 0.1nH 500MHz 14Q-Factor 0.5A 0.2Ohm DCR 0201 T/R
