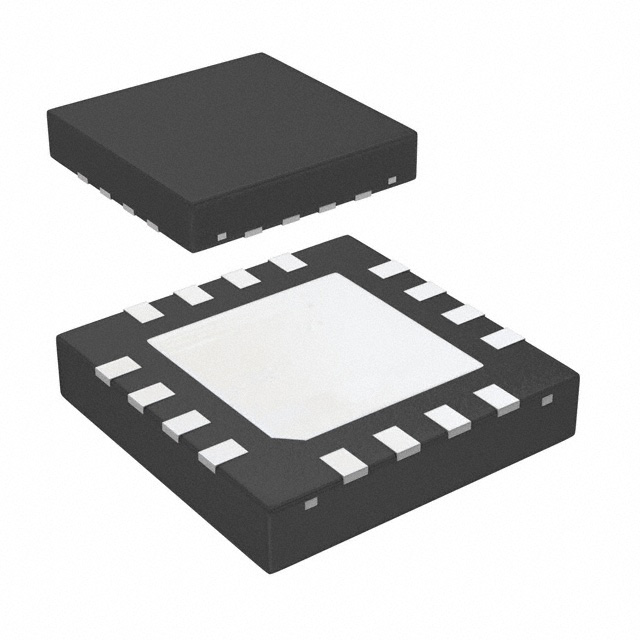

LMH0302SQ/NOPB 编带
The is a 3Gbps HD/SD SDI Cable Driver designed for use in SMPTE 424M, SMPTE 292M, SMPTE 344M and SMPTE 259M serial digital video applications. The LMH0302 drives 75R transmission lines Belden 1694A, Belden 8281 or equivalent at data rates up to 2.97Gbps. The LMH0302 provides two selectable slew rates for SMPTE 259M and SMPTE 424M/292M compliance. The output driver may be powered down via the output driver enable pin. It is powered from a single 3.3V supply. Power consumption is typically 125mW in SD mode and 165mW in HD mode.
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMH0302SQ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMH0302SQE/NOPB 德州仪器 | 类似代替 | LMH0302SQ/NOPB和LMH0302SQE/NOPB的区别 |
