LTC1349IG

IC TXRX 5V RS232 LOW PWR 28-SSOP

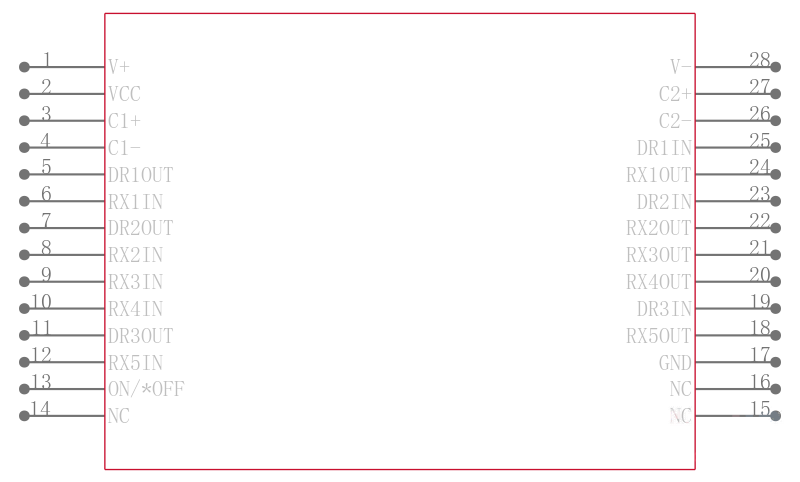

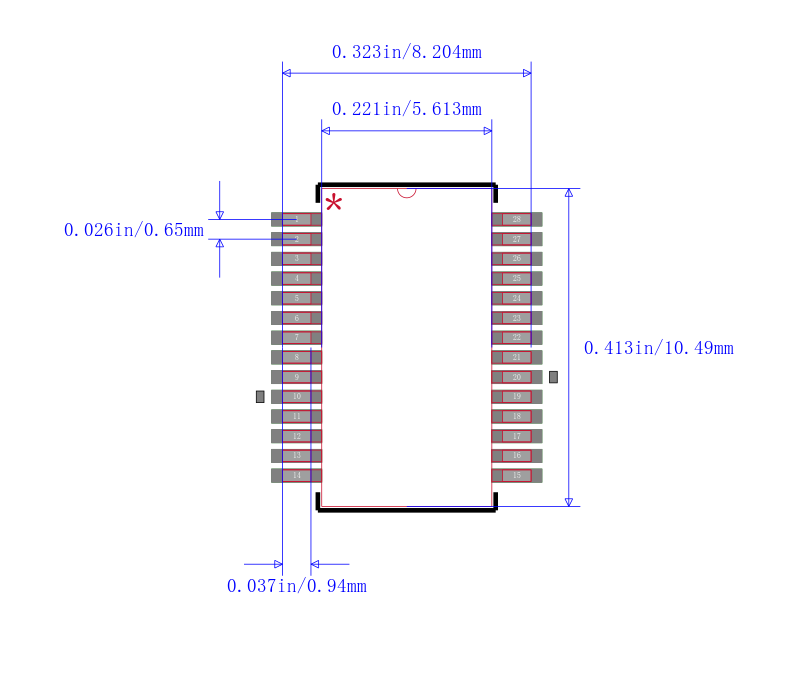

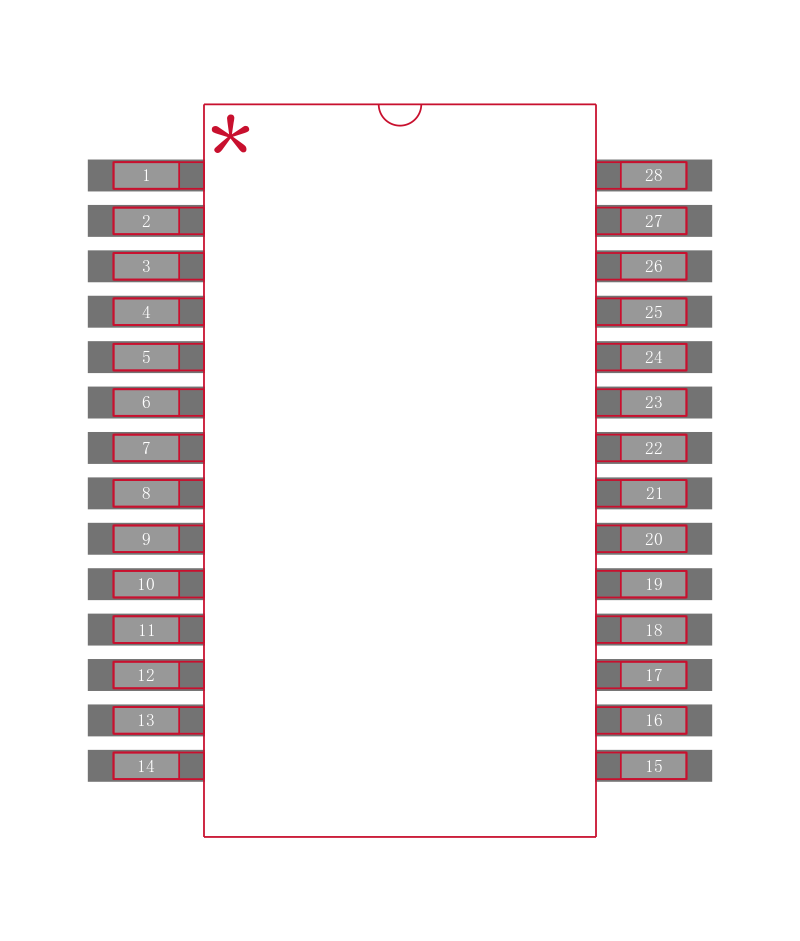

DESCRIPTION

The LTC1349 is a 3-driver/5-receiver RS232 transceiver with very low supply current. In the no load condition, the supply current is only 300µA. The charge pump only requires four 0.1µF capacitors.

In SHUTDOWN mode, two receivers are kept alive and the supply current is 35µA. All RS232 outputs assume a high impedance state in SHUTDOWN and with the power off.

The LTC1349 is fully compliant with all data rate and overvoltage RS232 specifications. The transceiver can operate up to 120k baud with a 2500pF, 3kΩ load. Both driver outputs and receiver inputs can be forced to ±25V without damage, and can survive multiple ±10kV ESD strikes.

FEATURES

■ Low Supply Current: 300µA

■ Two Receivers Kept Alive in SHUTDOWN

■ ESD Protection Over ±10kV

■ Operates from a Single 5V Supply

■ Uses Small Capacitors: 0.1µF

■ Operates to 120k Baud

■ Three-State Outputs Are High Impedance When Off

■ Output Overvoltage Does Not Force Current Back into Supplies

■ RS232 I/O Lines Can Be Forced to ±25V Without Damage

■ Pin Compatible with LT1137A and LT1237

■ Flowthrough Architecture

APPLICATIONS

■ Notebook Computers

■ Palmtop Computers
