LM393AP

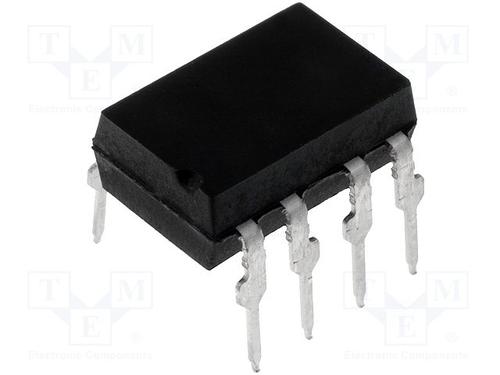

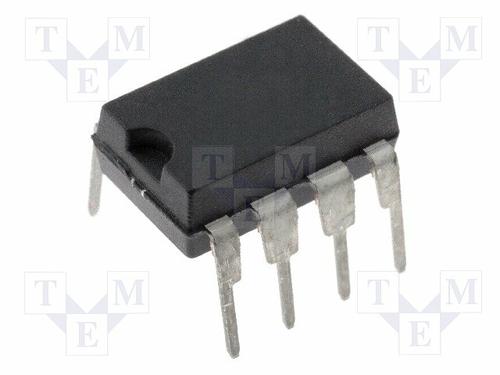

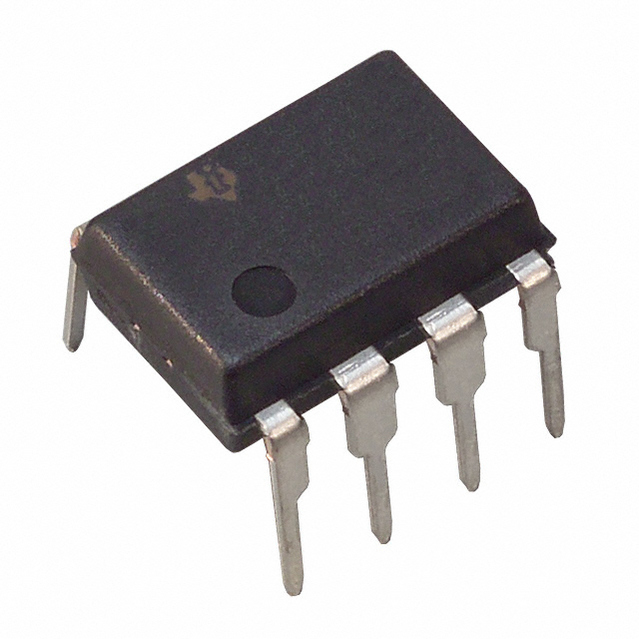

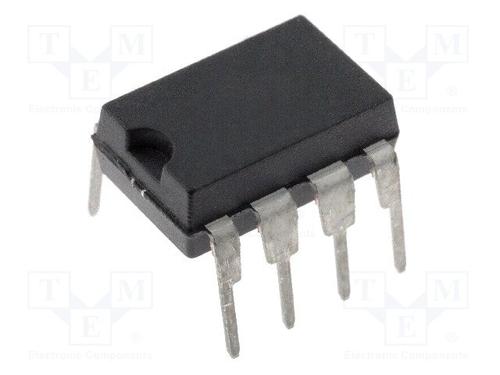

TEXAS INSTRUMENTS  LM393AP  模拟比较器, 轨至轨, 差分, 2, 300 ns, 2V 至 36V, DIP, 8 引脚

The is a Dual Differential Comparator designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 to 36V and VCC is at least 1.5V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. The LM393A device is characterized for operation from 0 to 70°C.

.

Low supply-current drain independent of supply voltage - 0.4mA per comparator

.

Common-mode input voltage range includes ground

.

±36V Differential input voltage range equal to maximum-rated supply voltage

.

Low output saturation voltage

.

Output compatible with TTL, MOS and CMOS
