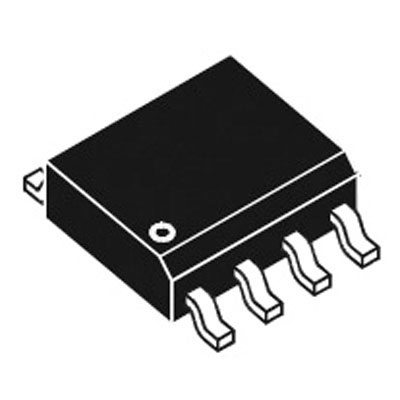

TEXAS INSTRUMENTS LMC6762AIM 模拟比较器, 双路, 微功率, 2, 4 µs, 2.7V 至 15V, SOIC, 8 引脚
The is a dual micro-power rail-to-rail input CMOS Comparator with push-pull output and maximum supply current of 10µA/comparator. It is designed to operate over a wide range of supply voltages, from 2.7 to 15V. The LMC6762 has ensured specifications at 2.7V to meet the demands of 3V digital systems. The LMC6762 has an input common-mode voltage range which exceeds both supplies. This is a significant advantage in low-voltage applications. The LMC6762 also features a push-pull output that allows direct connections to logic devices without a pull-up resistor. A quiescent power consumption of 50µW/amplifier makes the LMC6762 ideal for many applications. The ultra-low supply current is also independent of power supply voltage. Ensured operation at 2.7V and a rail-to-rail performance makes this device ideal for battery-powered applications.
输出电流 30 mA
供电电流 0.02 mA
电路数 2
通道数 2
针脚数 8
共模抑制比 75 dB
输入补偿电压 5 mV
输入偏置电流 0.04 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 15V
电源电压Max 15 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.9 mm
高度 1.45 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMC6762AIM TI 德州仪器 | 当前型号 | 当前型号 |
LMC6762AIM/NOPB 德州仪器 | 完全替代 | LMC6762AIM和LMC6762AIM/NOPB的区别 |
LMC6762BIM/NOPB 德州仪器 | 类似代替 | LMC6762AIM和LMC6762BIM/NOPB的区别 |
LMC6762BIMX/NOPB 德州仪器 | 类似代替 | LMC6762AIM和LMC6762BIMX/NOPB的区别 |
