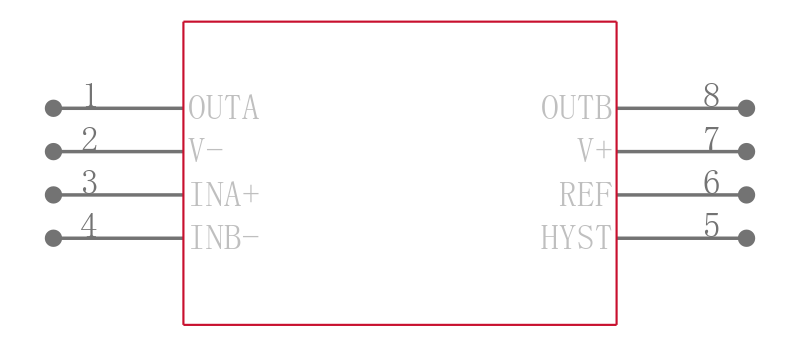

LTC1442CS8#PBF

LINEAR TECHNOLOGY  LTC1442CS8#PBF  模拟比较器, 双路, 微功率, 2, 5 µs, 2V 至 11V, SOIC, 8 引脚

The is an ultra-low power single and dual Comparator with built-in references. The comparator features 1.182V ±1% reference, programmable hysteresis and TTL/CMOS outputs that sink and source current. The reference output can drive a bypass capacitor of up to 0.01µF without oscillation. The comparator operates from a single 2 to 11V supply or a dual ±1 to ±5.5V supply. Comparator hysteresis is easily programmed by using two resistors and the HYST pin. The comparator input operates from the negative supply to within 1.3V of the positive supply. The comparator output stage can continuously source up to 40mA. By eliminating the cross-conducting current that normally happens when the comparator changes logic states, the power supply glitches are eliminated.

.

2.1µA Ultra-low quiescent current

.

Reference output drives 0.01µF capacitor

.

Input voltage range includes the negative supply

.

12µs Propagation delay with 10mV overdrive

.

No crowbar current

.

Pin-compatible upgrades for MAX921/922/923
