LM311H/NOPB

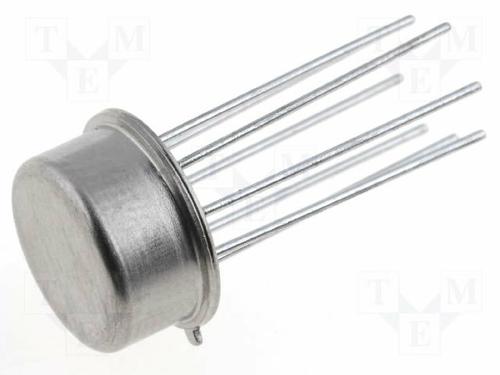

TEXAS INSTRUMENTS  LM311H/NOPB  芯片, 比较器, 单路, 200NS, TO-99-8

The is a Voltage Comparator has input currents nearly a thousand times lower than devices like the LM106 or LM710. It is also designed to operate over a wider range of supply voltages from standard ±15V op amp supplies down to the single 5V supply used for IC logic. Its output is compatible with RTL, DTL and TTL as well as MOS circuits. Further it can drive lamps or relays, switching voltages up to 50V at currents as high as 50mA. Both the inputs and the outputs of the LM311-N can be isolated from system ground and the output can drive loads referred to ground, the positive supply or the negative supply. Offset balancing and strobe capability are provided and outputs can be wire ORed.

.

150nA Maximum Input current over-temperature

.

Offset current - 20nA maximum over-temperature

.

±30V Differential input voltage range

.

Green product and no Sb/Br
