LT1720CDD#PBF

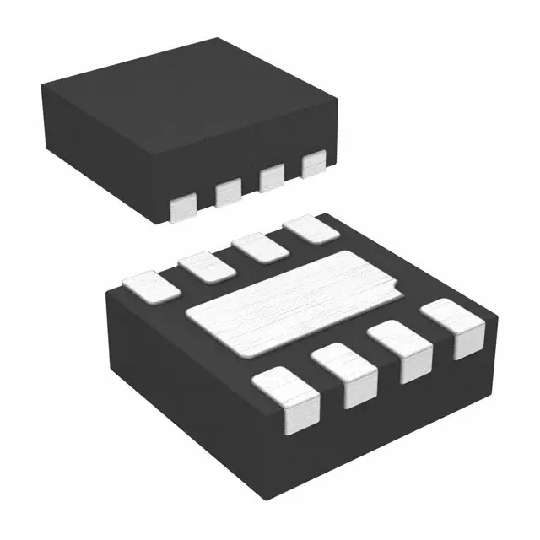

LINEAR TECHNOLOGY  LT1720CDD#PBF  模拟比较器, 双路, 高速, 2, 4.5 ns, 2.7V 至 6V, DFN, 8 引脚

The is an UltraFast™ dual/quad single-supply Comparator optimized for single supply operation, with a supply voltage range of 2.7 to 6V. The input voltage range extends from 100mV below ground to 1.2V below the supply voltage. Internal hysteresis makes the LT1720 easy to use even with slow moving input signals. The rail-to-rail outputs directly interface to TTL and CMOS. Alternatively, the symmetric output drive can be harnessed for analogue applications or for easy translation to other single supply logic levels. The pin-outs of the LT1720 minimize parasitic effects by placing the most sensitive inputs inverting away from the outputs, shielded by the power rails. The LT1720 is ideal for systems where small size and low power are paramount.

.

Low power - 4mA per comparator

.

Pin-out optimized for high speed ease of use

.

Input voltage range extends 100mV below negative rail

.

TTL/CMOS compatible rail-to-rail outputs

.

Internal hysteresis with specified limits

.

Low dynamic current drain, 15µA/V-MHz, dominated by load in most circuits

.

LAAV Part marking
