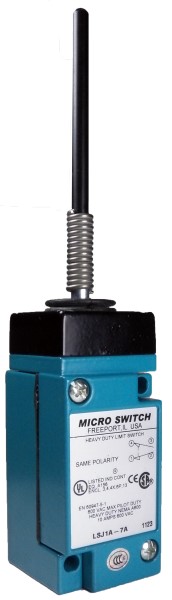

HONEYWELL LSJ1A-7A 限位开关
The HDLS product line has been designed to be rugged and reliable even in the most challenging applications. It is available with a modular construction allowing for a wide variety of actuator styles, operating heads and electrical circuitry options. Dual bearing construction offers increased strength with side rotary styles. Operating heads can be rotated 90 degrees and are also field adjustable to CW and/or CCW operation.
e络盟:
限位开关
艾睿:
Look no further than the heavy duty LSJ1A-7A limit switch from Honeywell, a device that operates via the switch&s;s motion or in the presence of another object. LSJ1A-7A is housed in zinc die cast. This device has a maximum current rating of 10 A @ 24VDC. It has a SPDT configuration. This limit switch has an operating temperature range of -12 °C to 93 °C. The LSJ1A-7A limit switch has a conduit termination style. The maximum DC voltage rating is 24 VDC. This product is 41.1 mm long, 210.1 mm tall and 44.5 mm deep.
Allied Electronics:
WOBBLE-PLASTIC ROD Switch, 1NC1NO SPDT SNAP ACTION
Chip1Stop:
Switch Limit N.O./N.C. SPDT Wobble Conduit 2.78N Rotary Screw Mount
Verical:
Switch Limit N.O./N.C. SPDT Wobble Screw Mount 10A 24VDC 2.78N Rotary Conduit Automotive
Newark:
# HONEYWELL LSJ1A-7A Limit Switch, Wobble Rod, SPDT-1NO, SPDT-NC, 10 A, 600 V, 2.78 N
MASTER:
MICRO SWITCH™ Heavy-Duty Limit Switches: HDLS Series, Epoxy-Coated Zinc Housing, Momentary, Wobble Actuator, Ø 6,4 mm x 139,7 mm [0.25 in x 5.5 in] Plastic Rod, 1NC 1NO Single Pole Double Throw SPDT Snap Action, Double Break, AC 15, A600; DC 13, R300, 0
Online Components:
Switch Limit N.O./N.C. SPDT Wobble Conduit 10A 24VDC Rotary Screw Mount Automotive
Electro Sonic:
MICRO SWITCH™ Heavy-Duty Limit Switches: HDLS Series, Epoxy-Coated Zinc Housing, Momentary, Wobble Actuator, Ø 6,4 mm x 139,7 mm [0.25 ...
