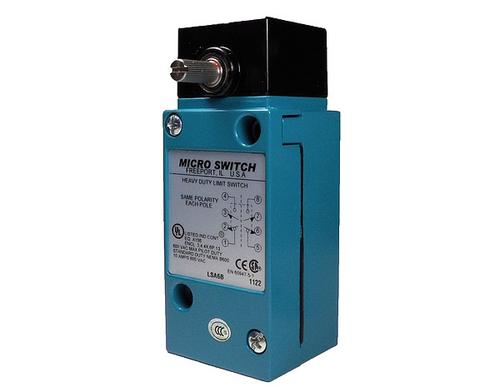

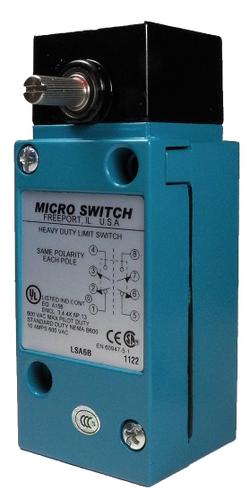

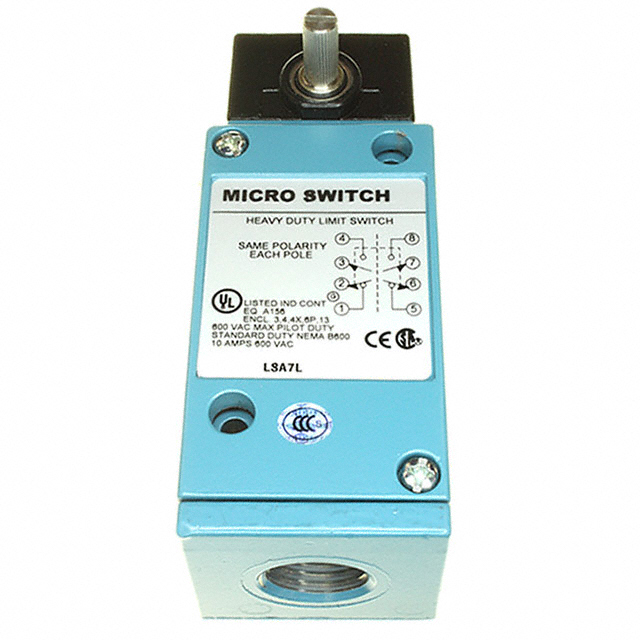

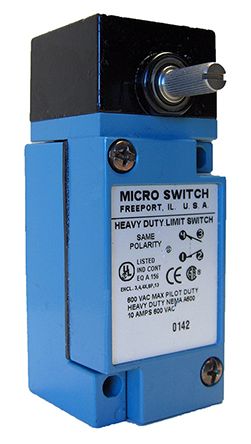

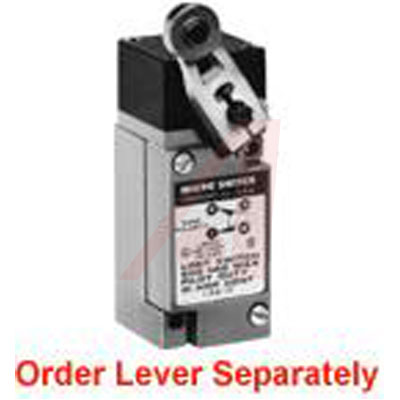

LSA7L

HDLS 系列限位开关HDLS 系列开关包含一个“boss-and-socket”头部，设计用于将头部牢固地固定到主体；独特的全金属驱动链提供一致的操作特性（即使在高温条件下）；自提升压力板端子可节省接线时间。坚固外壳，静电环氧表面 操作端可旋转 90° 10 A 可修改侧面旋转样式，以用于顺时针和/或逆时针操作 应用包括食品和饮料、材料处理和传送设备 ### 认可UL, CSA, CE, CCC

HDLS 系列限位

HDLS 系列开关包含一个“boss-and-socket”头部，设计用于将头部牢固地固定到主体；独特的全金属驱动链提供一致的操作特性（即使在高温条件下）；自提升压力板端子可节省接线时间。

坚固外壳，静电环氧表面

操作端可旋转 90°

10 A

可修改侧面旋转样式，以用于顺时针和/或逆时针操作

应用包括食品和饮料、材料处理和传送设备

### 认可

UL, CSA, CE, CCC

欧时:
Limit Switch Side Rotary No Lever

贸泽:
Limit Switches HDLS Non Plug-in Sd Rtry 2NC-2NO DPDT

艾睿:
Thanks to Honeywell and their heavy duty LSA7L limit switch, your microprocessor-based circuit can process information based on the switch&s;s position relative to the device itself. This device has a maximum current rating of 10 A @ 24VDC. LSA7L is housed in zinc die cast. It has a DPDT configuration. This limit switch has an operating temperature range of -12 °C to 121 °C. The LSA7L limit switch has a conduit termination style. This product is 47.8 mm long, 119 mm tall and 62 mm deep. The maximum DC voltage rating is 24 VDC.

Allied Electronics:
Limit Switch; Heavy-Duty; Side Rotary; 10 A; 600 VAC, 250 VDC; 0.45 Nm

Chip1Stop:
Switch Limit N.O./N.C. DPDT Side Rotary Conduit 10A 24VDC Rotary Screw Mount Automotive

Verical:
Switch Limit N.O./N.C. DPDT Side Rotary Conduit 10A 24VDC Rotary Screw Mount Automotive

Newark:
# HONEYWELL  LSA7L  Limit Switch, Side Rotary, DPST-NO, DPST-NC, 10 A, 600 V, 0.45 N

MASTER:
MICRO SWITCH™ Heavy-Duty Limit Switches: HDLS Series, Epoxy-Coated Zinc Housing, Side Rotary, Momentary, No Lever, 2NC 2NO Double Pole Double Throw DPDT Snap Action, Double Break, AC 15, A600; DC 13, R300, 0.5 in - 14 NPT Conduit, Non Plug-In, Operating

Electro Sonic:
MICRO SWITCH™ Heavy-Duty Limit Switches: HDLS Series, Epoxy-Coated Zinc Housing, Side Rotary, Momentary, No Lever, 2NC 2NO Double Pole Double ...
