Switch Limit N.O./N.C. SPDT Cat Whisker Conduit 10A 24VDC Rotary Screw Mount Automotive
**HDLS Series Limit Switch**
The HDLS series switches include a boss-and-socket head design for secure head-to-body retention, unique all-metal drive chain for consistent operating characteristics even at high temperature and self-lifting pressure plate terminals to save wiring time.
艾睿:

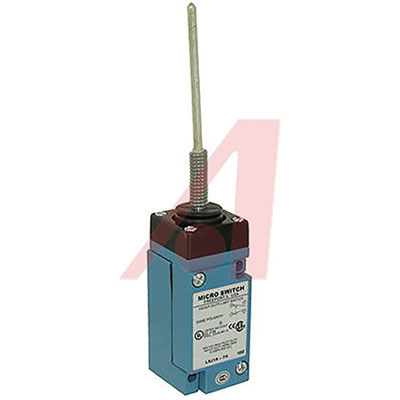

By activating through the motion or presence of another object, this heavy duty LSK1A-8A limit switch from Honeywell can provide you specific information based on the switch&s;s position. It has a SPDT configuration. LSK1A-8A is housed in zinc die cast. This device has a maximum current rating of 10 A @ 24VDC. This limit switch has a minimum operating temperature of -12 °C and a maximum of 93 °C. The LSK1A-8A limit switch has a conduit termination style. This product is 41.1 mm long, 210.1 mm tall and 44.5 mm deep. The maximum DC voltage rating is 24 VDC.
Allied Electronics:
IP65, IP66, IP67 Snap Action Limit Switch, Coil Spring, Die Cast Zinc, NO/NC, 600V
Chip1Stop:
Switch Limit N.O./N.C. SPDT Wobble Conduit 1.39N Rotary Screw Mount
Verical:
Switch Limit N.O./N.C. SPDT Cat Whisker Screw Mount 10A 24VDC 1.39N Rotary Conduit Automotive
Newark:
# HONEYWELL LSK1A-8A Limit Switch, Wobble Cat Whisker, SPDT, 10 A, 600 V, 1.39 N, HDLS Series
MASTER:
Switch Limit N.O./N.C. SPDT Cat Whisker Conduit 10A 24VDC Rotary Screw Mount Automotive
Online Components:
Switch Limit N.O./N.C. SPDT Cat Whisker Conduit 10A 24VDC Rotary Screw Mount Automotive
Electro Sonic:
Switch Limit N.O./N.C. SPDT Cat Whisker Conduit 10A 24VDC Rotary Screw Mount Automotive
