LS3A1A

LS3A1A图片1
LS3A1A图片2
LS3A1A图片3

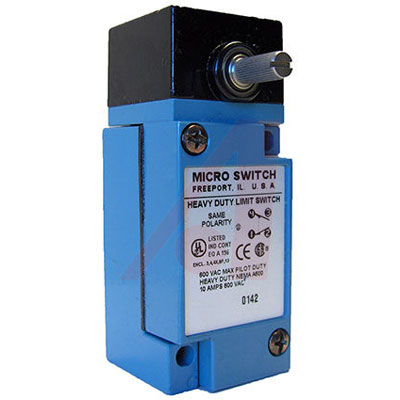

LS3A1A图片4
LS3A1A图片5
LS3A1A图片6
LS3A1A概述

Heavy Duty Plug-in Limit Switch 10A Side Rotary w/o-operator NEMA 4X 6P SPDT 1NO 1NC

**HDLS Series Limit Switch**

The HDLS series switches include a boss-and-socket head design for secure head-to-body retention, unique all-metal drive chain for consistent operating characteristics even at high temperature and self-lifting pressure plate terminals to save wiring time.


贸泽:
Limit Switches Limit Switch Single Pole Plug-in


艾睿:
Switch Limit N.O./N.C. SPDT Side Rotary Conduit Rotary Screw Mount Automotive


Allied Electronics:
Limit Switch, Side Rotary; 1NC 1NO SPDTSnap Action; PG13.5


Verical:
Switch Limit N.O./N.C. SPDT Side Rotary Conduit Rotary Screw Mount Automotive


Newark:
# HONEYWELL  LS3A1A  Limit Switch, Side Rotary, 600 V, 0.45 N-m


MASTER:
Switch Limit N.O./N.C. SPDT Side Rotary Screw Mount Rotary Conduit


Online Components:
Switch Limit N.O./N.C. SPDT Side Rotary Conduit Rotary Screw Mount Automotive


Electro Sonic:
Switch Limit N.O./N.C. SPDT Side Rotary Screw Mount Rotary Conduit


LS3A1A中文资料参数规格
技术参数

额定电压DC 250 V

接触器类型 Side Rotary

额定电压AC 600 V

额定电流 10 A

触点类型 SPDT

工作温度Max 121 ℃

工作温度Min -12 ℃

封装参数

安装方式 Screw

物理参数

工作温度 -12℃ ~ 121℃

外壳材质 Zinc Die-Cast

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536509040

数据手册

在线购买LS3A1A
型号: LS3A1A
描述:Heavy Duty Plug-in Limit Switch 10A Side Rotary w/o-operator NEMA 4X 6P SPDT 1NO 1NC
