TEXAS INSTRUMENTS LM319MX/NOPB 模拟比较器, 双路, 高速, 2, 80 ns, 5V 至 36V, SOIC, 14 引脚
The is a high speed Precision Dual Comparator fabricated on a single monolithic chip. It is designed to operate over a wide range of supply voltages down to a single 5V logic supply and ground. It has higher gain and lower input currents than devices such as the LM710. The LM319A offers improved precision over the standard LM319 with tighter tolerances on offset voltage, offset current and voltage gain. Although designed primarily for applications requiring operation from digital logic supplies. The LM319 is specified from 0 to 70°C.
电源电压DC 36.0 V
输出电流 25.0 mA
供电电流 4.3 mA
电路数 2
通道数 2

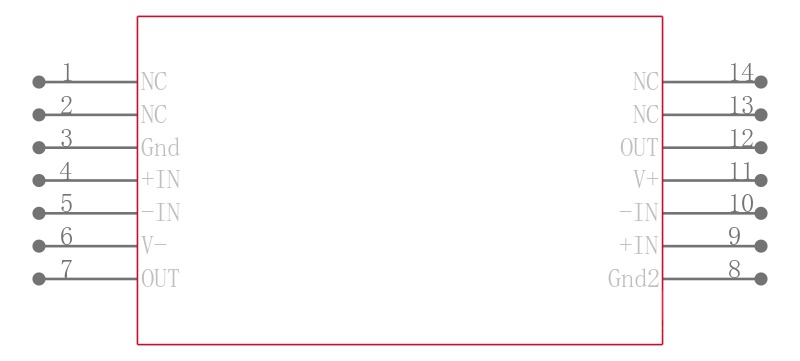

针脚数 14
耗散功率 500 W
输入补偿电压 8 mV
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 500 mW
电源电压 5V ~ 36V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
封装 SOIC-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 消费电子产品, 自动化与过程控制, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2018/06/27
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM319MX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM319M 德州仪器 | 完全替代 | LM319MX/NOPB和LM319M的区别 |
LM319M/NOPB 德州仪器 | 类似代替 | LM319MX/NOPB和LM319M/NOPB的区别 |
LM319MX 德州仪器 | 类似代替 | LM319MX/NOPB和LM319MX的区别 |
