LQP15MN1N4W02D

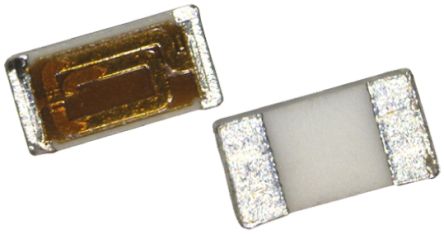

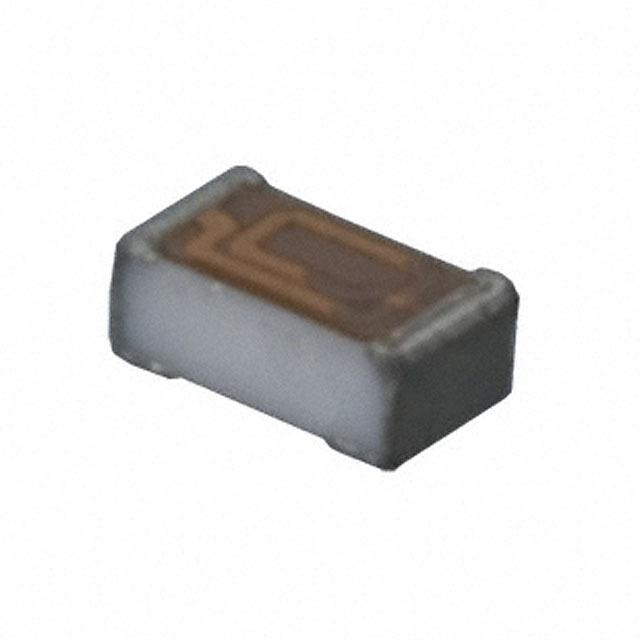

Murata 0402 LQP15M 系列薄膜电感器LQP15M 超小型薄型片式电感器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。 高频率范围时的高 Q 由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信设备）中提供稳定的电感 ### 应用：-移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。 移动电话 “蓝牙” W-LAN 一般高频电路 ### 表面安装 0402 电感器（扼流圈）

固定器

得捷:
FIXED IND 1.4NH 280MA 200MOHM SM

立创商城:
1.4nH ±0.05nH 200mΩ

欧时:
Murata LQP15M 系列 LQP15MN1N4W02D 1.4 nH ±0.05nH 铁氧体 多层贴片式电感器, 0402 1005M封装, SRF: 6GHz

艾睿:
Save valuable space on a PCB with this rf chip LQP15MN1N4W02D surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device utilizes thin film technology. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 6G Hz. This SMD inductor has a maximum DC current of 280m A with a maximum resistance of 200m Ohm. It has an inductance of 1.4n H. This product is 1.1 mm long, 0.45 mm tall and 0.6 mm deep.

安富利:
Ind RF Chip Thin Film 1.4nH 0.05nH 500MHz 13Q-Factor 280mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 1.4nH 0.05nH 500MHz 13Q-Factor 280mA 200mOhm DCR 0402 Paper T/R

Verical:
Inductor RF Chip Unshielded Thick Film 0.0014uH 0.05nH 500MHz 13Q-Factor 0.28A 0.2Ohm DCR 0402 T/R
