LTC6752HS5#TRMPBF

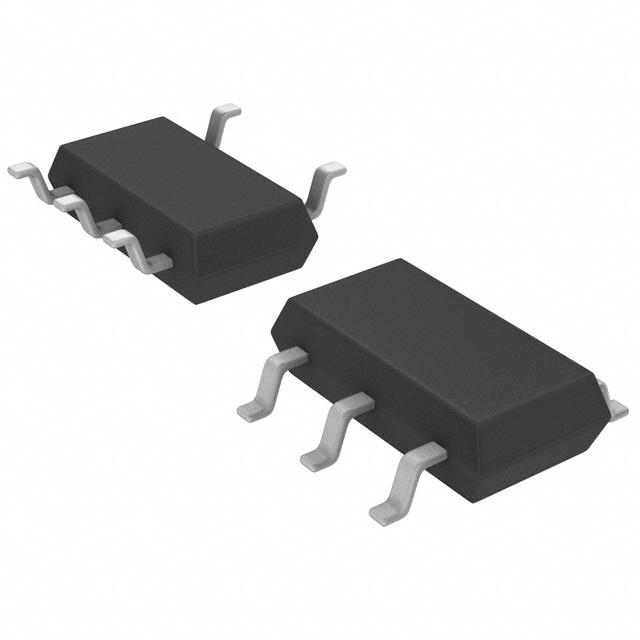

LINEAR TECHNOLOGY  LTC6752HS5#TRMPBF  模拟比较器, 单路, 高速, 1, 3.4 ns, 2.45V至3.5V, TSOT-23, 5 引脚

The is a very high speed Comparator capable of supporting toggle rates up to 280MHz. This comparator exhibits low propagation delays of 2.9ns and fast rise/fall times of 1.2ns. The LTC6752 comparator has rail-to-rail inputs that operate from 2.45 to 3.5 or 5.25V. The outputs are CMOS and the separate supply options can operate down to 1.71V, allowing for directly interfacing to 1.8V logic devices. The low propagation delay of only 2.9ns combined with low dispersion of only 1.8ns makes this comparator an excellent choice for critical timing applications. Similarly, the fast toggle rate and the low jitter of 4.5ps RMS makes the LTC6752 ideally suited for high frequency line driver and clock recovery circuits.

.

Rail-to-rail inputs extend beyond both rails

.

Shutdown pin for reduced power

.

Output latch and adjustable hysteresis

.

Complementary outputs

.

Direct replacement for ADCMP60X family

.

LTGKT Part marking
