LINEAR TECHNOLOGY LTC2626CDD#PBF 数模转换器, 12 bit, 串行, 2.7V 至 5.5V, DFN, 10 引脚
The is a single 12-bit rail-to-rail voltage output Digital-to-analog Converter DAC has built-in high performance output buffers and is guaranteed monotonic. This part establish new board-density benchmarks for 12-bit DAC and advance performance standards for output drive and load regulation in single-supply, voltage-output DAC. The part uses a 2-wire, I²C compatible serial interface. The LTC2626 incorporates a power-on reset circuit. During power-up, the voltage outputs rise less than 10mV above zero scale and after power-up, it stay at zero scale until a valid write and update take place.
供电电流 340 µA
通道数 1
针脚数 10
位数 12
工作温度Max 70 ℃
工作温度Min 0 ℃
数模转换数DAC 1
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 10

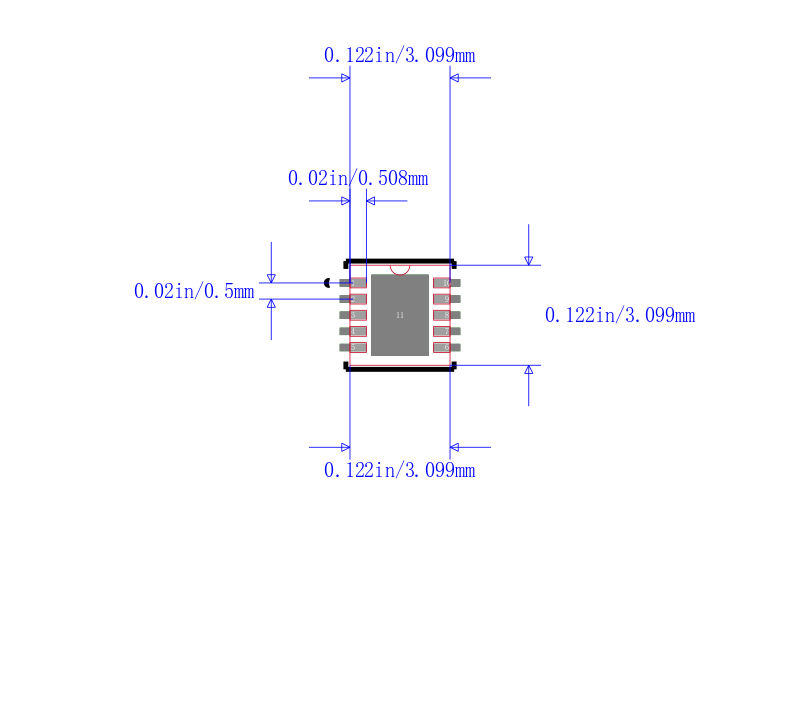

封装 DFN-10
封装 DFN-10
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Each
制造应用 Test & Measurement, Consumer Electronics, 自动化与过程控制, 通信与网络, Automation & Process Control, 传感与仪器, Communications & Networking, 消费电子产品, 测试与测量, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC2626CDD#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2626CDD#TRPBF 凌力尔特 | 完全替代 | LTC2626CDD#PBF和LTC2626CDD#TRPBF的区别 |
