LINEAR TECHNOLOGY LTC2470IMS#PBF 模数转换器, 16 bit, 250 SPS, 单, 2.7 V, 5.5 V, MSOP
The is a 16-bit single-ended Analog-to-digital Converter ADC with an integrated precision reference. They use a single 2.7 to 5.5V supply and communicate through a SPI Interface. The ADC is single-ended with a 0V to VREF input range and this is differential with a ±VREF input range. It includes an integrated oscillator and performs conversions with no latency for multiplexed applications. The ADC includes a proprietary input sampling scheme that reduces the average input current several orders of magnitude when compared to conventional delta sigma converters. Following a single conversion, the ADC automatically power down the converter and can also be configured to power down the reference. When both the ADC and reference are powered down, the supply current is reduced to 200nA. It includes user selectable 208/833sps output rate and due to a large oversampling ratio have relaxed anti-aliasing requirements.
电源电压DC 2.70V min
供电电流 2.50 mA
电路数 2
针脚数 12
位数 16
耗散功率 10.5 mW
采样率 250 SPS
模数转换数ADC 2
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
输入通道数 1
电源电压Max 5.5 V
电源电压Min 2.7 V
输入电压 1.25 V
安装方式 Surface Mount
引脚数 12

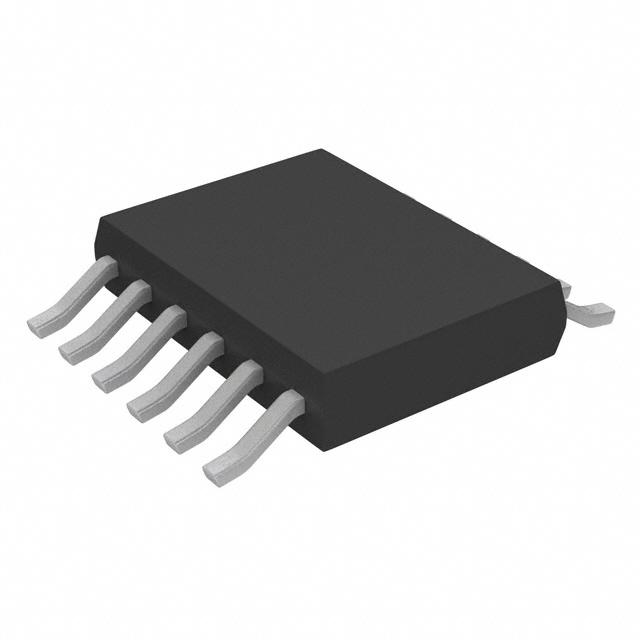

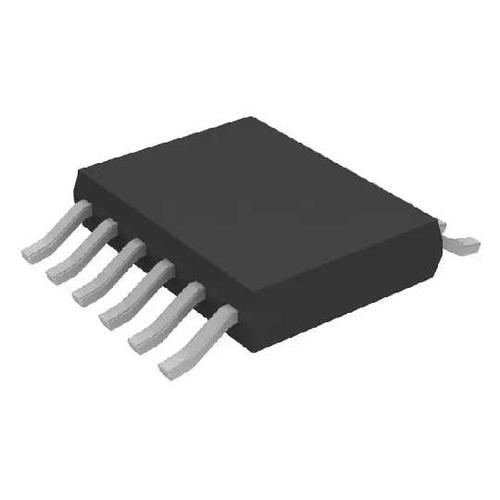

封装 MSOP-12
封装 MSOP-12
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Each
制造应用 Test & Measurement, Automation & Process Control, 自动化与过程控制, 传感与仪器, 测试与测量, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC2470IMS#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2470CMS#PBF 凌力尔特 | 类似代替 | LTC2470IMS#PBF和LTC2470CMS#PBF的区别 |
LTC2470CMS#TRPBF 凌力尔特 | 类似代替 | LTC2470IMS#PBF和LTC2470CMS#TRPBF的区别 |
LTC2470IMS#TRPBF 凌力尔特 | 类似代替 | LTC2470IMS#PBF和LTC2470IMS#TRPBF的区别 |
