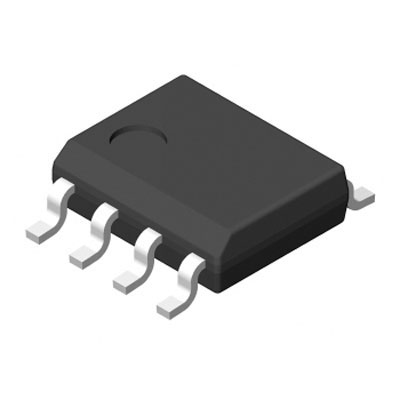

LINEAR TECHNOLOGY LTC1196-2BCS8#PBF Analog to Digital Converter, 8Bit, 1MSPS, Single, 2.7V, 6V, SOIC
offers this ADC that will easily convert your continuous analog signals into digital data without altering essential content. This device"s digital interface is serial 3-wire, 4-wire, spi. It has a single-ended and differential input signal. This device is based on SAR architecture. Its maximum power dissipation is 500 mW. This ADC has a resolution of 8bit. This ADC has an input voltage of 5 V. This ADC has a temperature range of 0 °C to 70 °C.
数字逻辑电平 SAR
电源电压DC 2.70V min
工作电压 3V ~ 5V
供电电流 11.0 mA
电路数 1
通道数 1
位数 8
耗散功率 50 mW
采样率 1 Msps
模数转换数ADC 1
输入数 1
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 500 mW
输入通道数 1
电源电压Max 6 V
电源电压Min 2.7 V
输入电压 5 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC1196-2BCS8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1196-2BCS8 凌力尔特 | 完全替代 | LTC1196-2BCS8#PBF和LTC1196-2BCS8的区别 |
LTC1196-2BCS8#TRPBF 凌力尔特 | 完全替代 | LTC1196-2BCS8#PBF和LTC1196-2BCS8#TRPBF的区别 |
