LINEAR TECHNOLOGY LTC2640AITS8-LZ12#TRMPBF 数模转换器, 12 bit, 串行, 2.7V 至 5.5V, TSOT-23, 8 引脚
Thanks to and their DAC converter, you"ll easily be able to convert computerized digital information and translate it into perceptible analog data. It has a voltage output. This device"s digital interface is serial 3-wire, spi, microwire. This DAC has a resolution of 12bit. This DAC has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device uses a single power supply.
供电电流 190 µA
针脚数 8
位数 12
工作温度Max 85 ℃
工作温度Min -40 ℃
数模转换数DAC 1
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 8

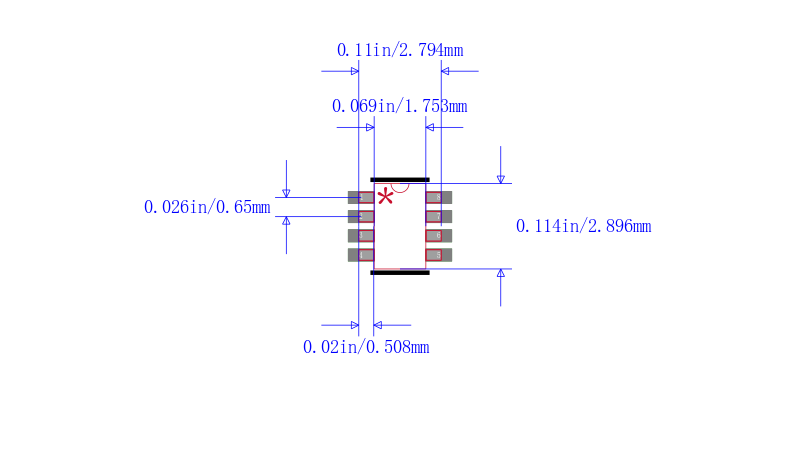

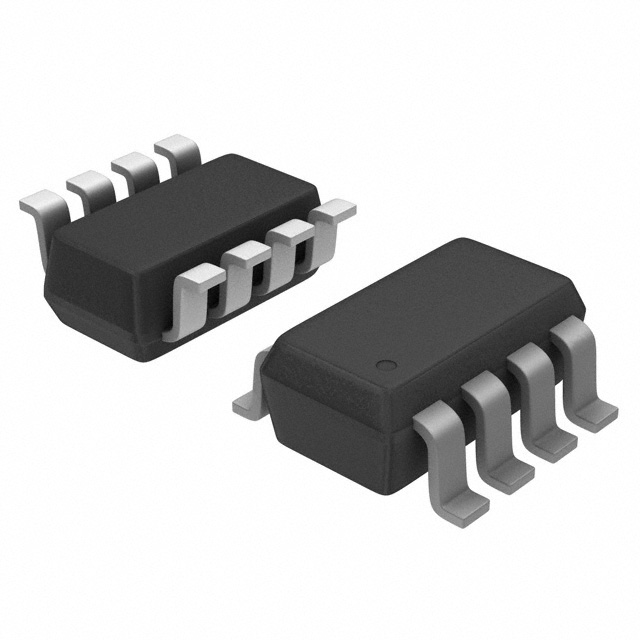

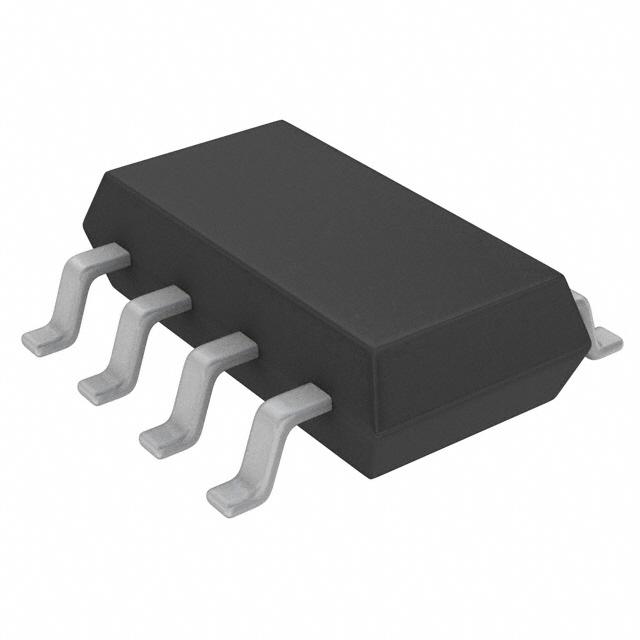

封装 TSOT-23-8
封装 TSOT-23-8
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC2640AITS8-LZ12#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2640AITS8-LZ12#TRPBF 凌力尔特 | 完全替代 | LTC2640AITS8-LZ12#TRMPBF和LTC2640AITS8-LZ12#TRPBF的区别 |
