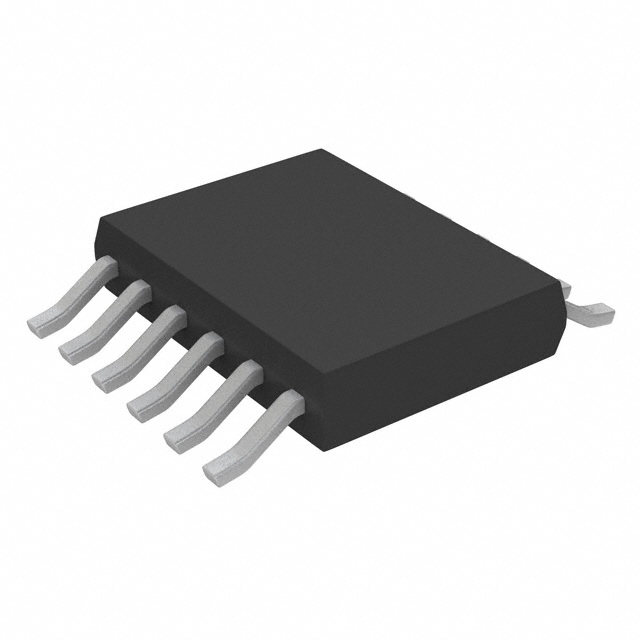

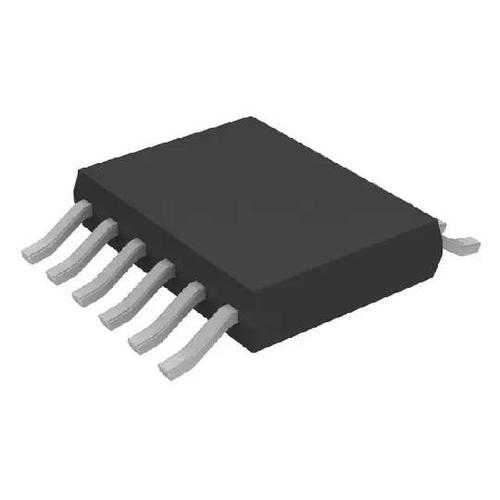

LINEAR TECHNOLOGY LTC2305IMS#PBF Analog to Digital Converter, 12Bit, 14KSPS, Single, 4.75V, 5.25V, MSOP
Before converting analog signals into digital data that a computer can read, this ADC from uses a transducer to convert real world physical signals into analog electrical signals. This device"s digital interface is serial 2-wire, i2c. It has a single-ended and differential input signal. This device is based on SAR architecture. Its maximum power dissipation is 17.5 mW. This ADC has a resolution of 12bit. This ADC has an input voltage of 4.096 V|±2.048V. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 4.75V min
供电电流 2.30 mA
电路数 1
位数 12
耗散功率 11.5 mW
采样率 14 ksps
模数转换数ADC 1
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 17.5 mW
输入通道数 1, 2
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 12
封装 MSOP-12
封装 MSOP-12
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC2305IMS#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2305IMS#TRPBF 凌力尔特 | 完全替代 | LTC2305IMS#PBF和LTC2305IMS#TRPBF的区别 |
LTC2305CMS#PBF 凌力尔特 | 类似代替 | LTC2305IMS#PBF和LTC2305CMS#PBF的区别 |
LTC2305CMS#TRPBF 凌力尔特 | 类似代替 | LTC2305IMS#PBF和LTC2305CMS#TRPBF的区别 |
