可编程并联稳压器 Programmable Shunt Regulator
The LM431A/LM431B/LM431C are three-terminal output adjustable regulators with thermal stability over operating temperature range. The output voltage can be set any value between V
REF
approximately 2.5 volts and 36 volts with two external resistors. These devices have a typical dynamic output impedance of 0.2
W
. Active output circuit provides a sharp turn-on characteristic, making these devices excellent replacement for Zener Diodes in many applications.
Product Highlights
Programmable output voltage to 36 volts
Low dynamic output impedance 0.20 typical
Sink current capability of 1.0 to 100mA
Equivalent full-range temperature coefficient of 50ppm/°C typical
Temperature compensated for operation over full rated operating temperature range
Low output noise voltage
Fast turn-on response
额定电流 100 mA
容差 ±1 %
输出电压 2.495V ~ 36V
输出电流 100 mA
通道数 1
输入电压Max 37 V
输出电压Max 36 V
输出电压Min 2.495 V
输出电流Max 100 mA
工作温度Max 85 ℃
工作温度Min -25 ℃
精度 ±1 %
输入电压 37 V
安装方式 Through Hole
引脚数 3

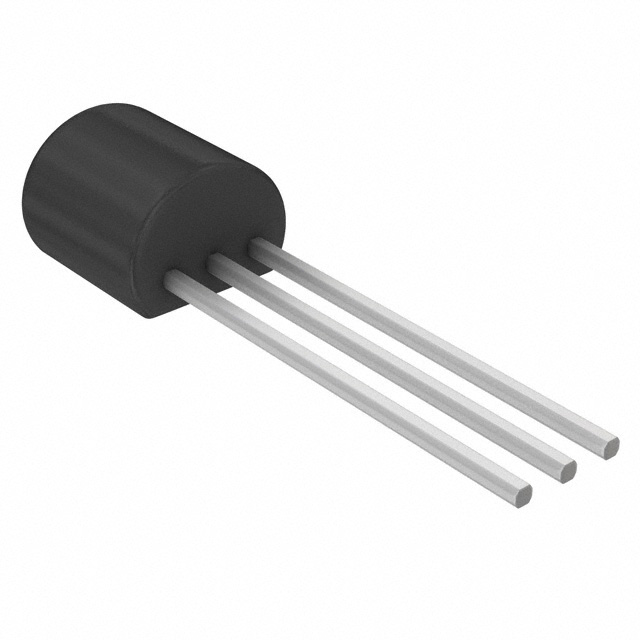

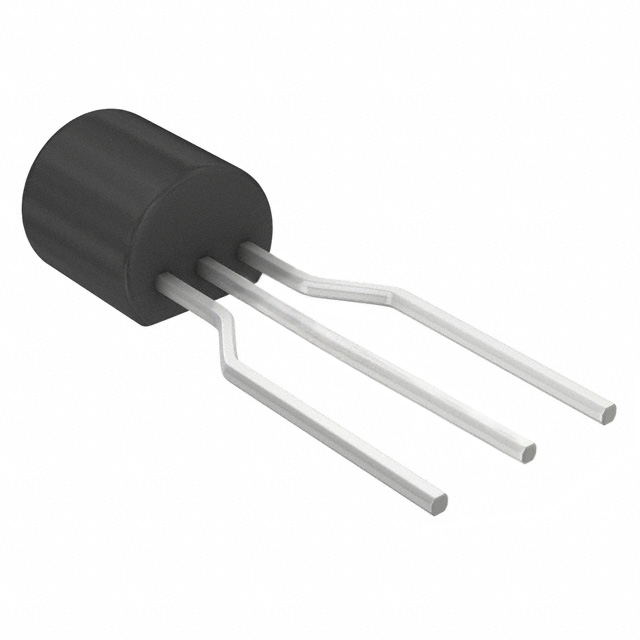

封装 TO-92-3
长度 4.58 mm
宽度 3.86 mm
高度 4.58 mm
封装 TO-92-3
工作温度 -25℃ ~ 85℃
温度系数 ±50 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM431BCZX Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
TL431ACLPX 飞兆/仙童 | 完全替代 | LM431BCZX和TL431ACLPX的区别 |
TL431AILPRPG 安森美 | 功能相似 | LM431BCZX和TL431AILPRPG的区别 |
TL431AILPR 德州仪器 | 功能相似 | LM431BCZX和TL431AILPR的区别 |
