LM311DG4

与选通差动比较仪 DIFFERENTIAL COMPARATORS WITH STROBES

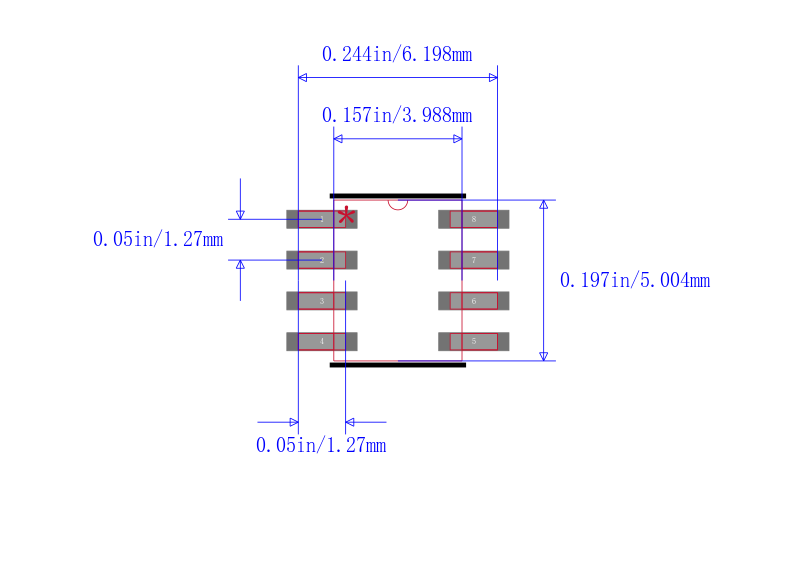

通用 MOS，开路集电极，开路发射极，TTL 8-SOIC

得捷:
IC COMPARATOR 1 GEN PUR 8SOIC

贸泽:
Analog Comparators Single Strobed Differential

艾睿:
This electronic LM311DG4 comparator circuit from Texas Instruments lets you know the larger of two input signals. It has an open collector/emitter output. Its typical dual supply voltage is ±3|±5|±9|±12 V, with a minimum of ±1.75 V and maximum of ±15 V. This comparator has a minimum operating temperature of 0 °C and a maximum of 70 °C. It has a single channel per chip. This device is made with bipolar technology. This device uses one or two power supplies.

安富利:
The LM111, LM211, and LM311 devices are single high-speed voltage comparators. These devices are designed to operate from a wide range of power-supply voltages, including ±15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC−. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.

Chip1Stop:
Comparator Single ±15V/30V 8-Pin SOIC Tube

Verical:
Comparator Single ±15V/30V 8-Pin SOIC Tube

Newark:
Analog Comparator, Single, Differential, 1, 115 ns, 3.5V to 30V, SOIC, 8 Pins

德州仪器TI:
High Speed, 30V, Differential Comparator With Strobes
