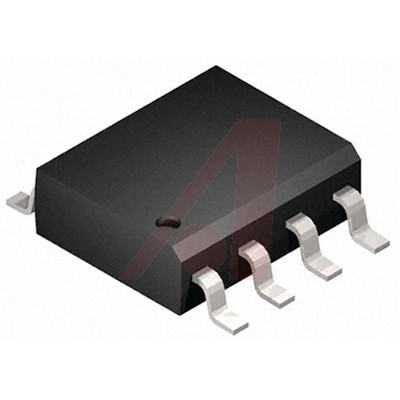

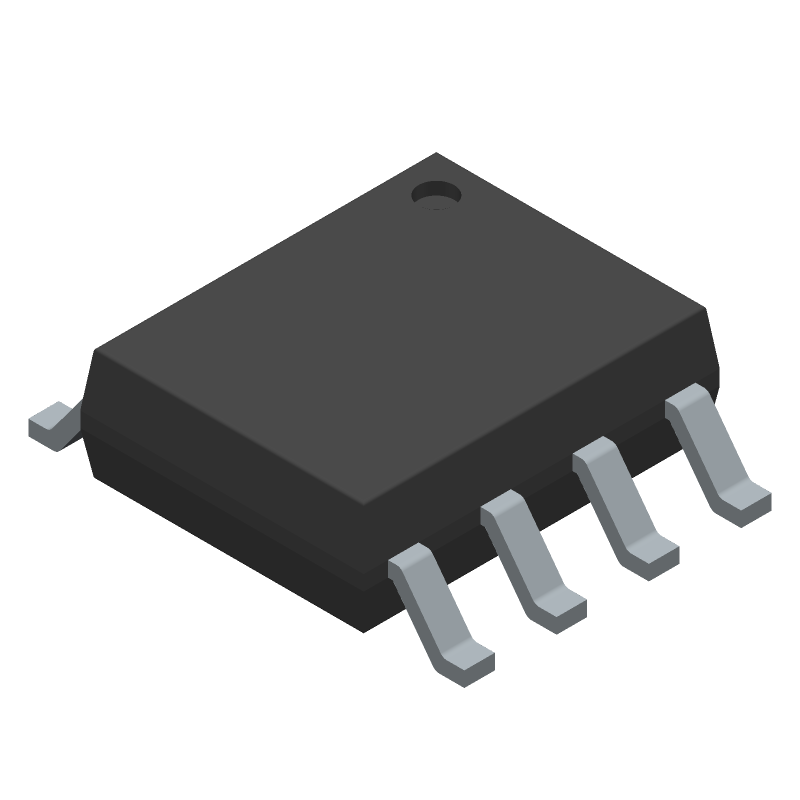

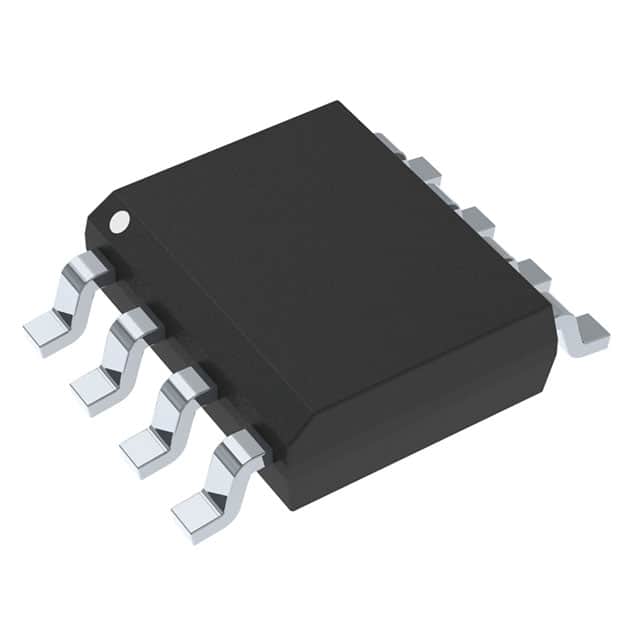

LM317LBDR2G

ON SEMICONDUCTOR  LM317LBDR2G  新

IC开发工具

立创商城:
正 Vin=40V Vout=1.2V~37V 100mA 80dB@120Hz Linear Voltage Regulator, 100 mA, High PSRR, Adjustable, Positive

得捷:
IC REG LIN POS ADJ 100MA 8SOIC

欧时:
### LM317 线性稳压器，ON Semiconductor**ON Semiconductor LM317** 系列是可调线性稳压器。 3 端子正电压稳压器可提供 1.5A 及更高的输出电流，输出电压介于 1.2 至 37V 之间。 易于使用的 LM317 可调稳压器可用于各种应用，如卡式调节，并可用作可编程输出稳压器；通过在调整和输出之间连接一个固定电阻器，它可用作精密电流稳压器。 输出电压范围：1.25 V 至 37 V 输出电流：1.5 A 短路电流限制、热保护和安全区域补偿 浮动操作，用于高电压应用 ### 线性稳压器，On Semiconductor

e络盟:
Linear Voltage Regulator, Adjustable, 1.2V to 37V/100 mA out, SOIC-8

艾睿:
Having trouble maintaining a steady voltage? This LDO LM317LBDR2G linear regulator from ON Semiconductor will give you control over the voltage levels of your circuit. It has an overall accuracy of ±4 %. This voltage regulation device&s;s single output can produce a current up to 0.1Min A. By working with a maximum input voltage of 40 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 1.2 to 37 V, this is power management at its best. Using a load regulation of 0.5% and line regulation of 0.04%/V is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

Allied Electronics:
Voltage Regulator Adj 1.2-37V 0.1A SOIC8

安富利:
Standard Regulator Pos 1.2V to 37V 0.1A 8-Pin SOIC N T/R

Chip1Stop:
Standard Regulator Pos 1.2V to 37V 0.1A 8-Pin SOIC N T/R

Verical:
Standard Regulator Pos 1.2V to 37V 0.1A 8-Pin SOIC N T/R

Newark:
# ON SEMICONDUCTOR  LM317LBDR2G  LINEAR VOLT REG, ADJ, 37V, 0.1A, SOIC-8

力源芯城:
可调整的3端正电压稳压器

DeviceMart:
IC REG LDO ADJ .1A 8-SOIC

Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.2 V ~ 37 V 100mA 8-SOIC
