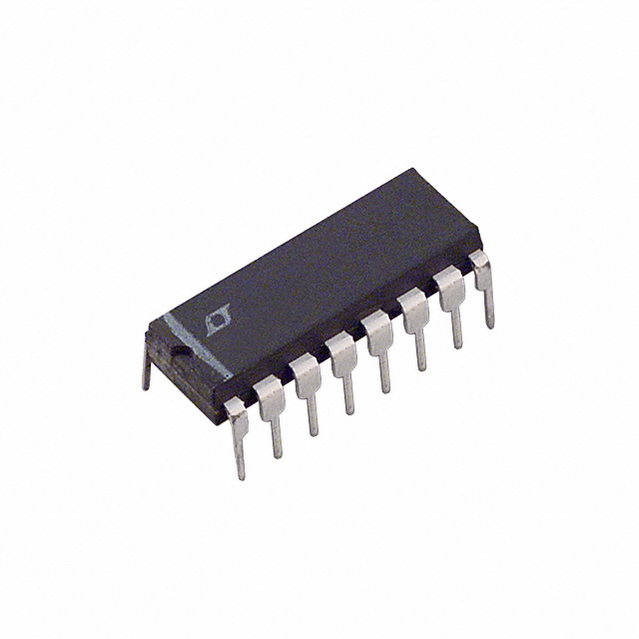

LTC1665CN#PBF

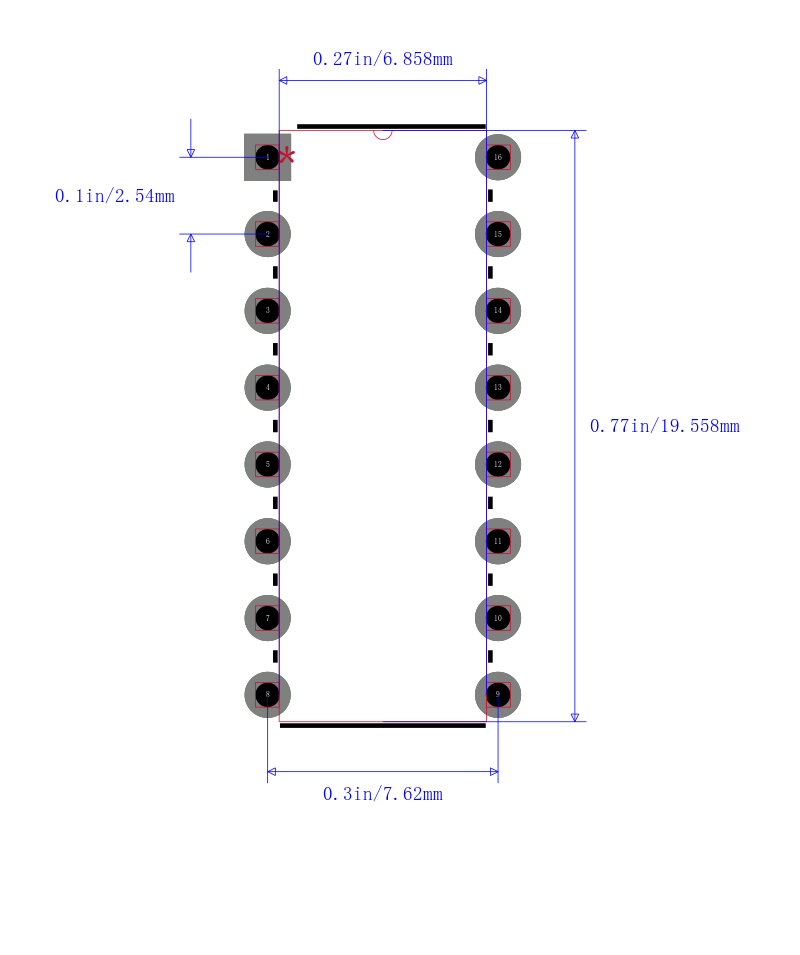

LINEAR TECHNOLOGY  LTC1665CN#PBF  数模转换器, 8 bit, 串行, 2.7V 至 5.5V, DIP, 16 引脚

The is an 8-bit serially addressable Digital-to-analog Converter DAC ideal for battery-powered applications, while their ease of use, high performance and wide supply range makes it excellent choices as general purpose converters. Each buffered DAC draws just 56µA total supply current, yet is capable of supplying DC output currents in excess of 5mA and reliably driving capacitive loads to 1000pF. Sleep mode further reduces total supply current to 1µA. proprietary, inherently monotonic voltage interpolation architecture provides excellent linearity while allowing for an exceptionally small external form factor.

.

Ultralow supply current

.

Power-saving sleep mode

.

Extremely compact size

.

Rail-to-rail voltage outputs drive 1000pF

.

Reference range includes supply for ratiometric 0V to VCC output

.

Reference input impedance is constant - eliminates external buffer
