GENRAL -目的LOW-电压比较器 GENRAL-PURPOSE LOW-VOLTAGE COMPARATORS
If you"re in need of a high gain differential amplifier to interface your electronic devices with digital logic circuits then implement this comparator circuit from Texas Instruments into your circuit design. It has an open collector output. This comparator has a temperature range of -40 °C to 125 °C. It has 2 channels per chip. This device utilizes bipolar technology. This device uses a single power supply.
电源电压DC 2.70V min
输出电流 84mA @5V
供电电流 0.2 mA
电路数 2
通道数 2
输入补偿电压 7 mV
输入偏置电流 250 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 8

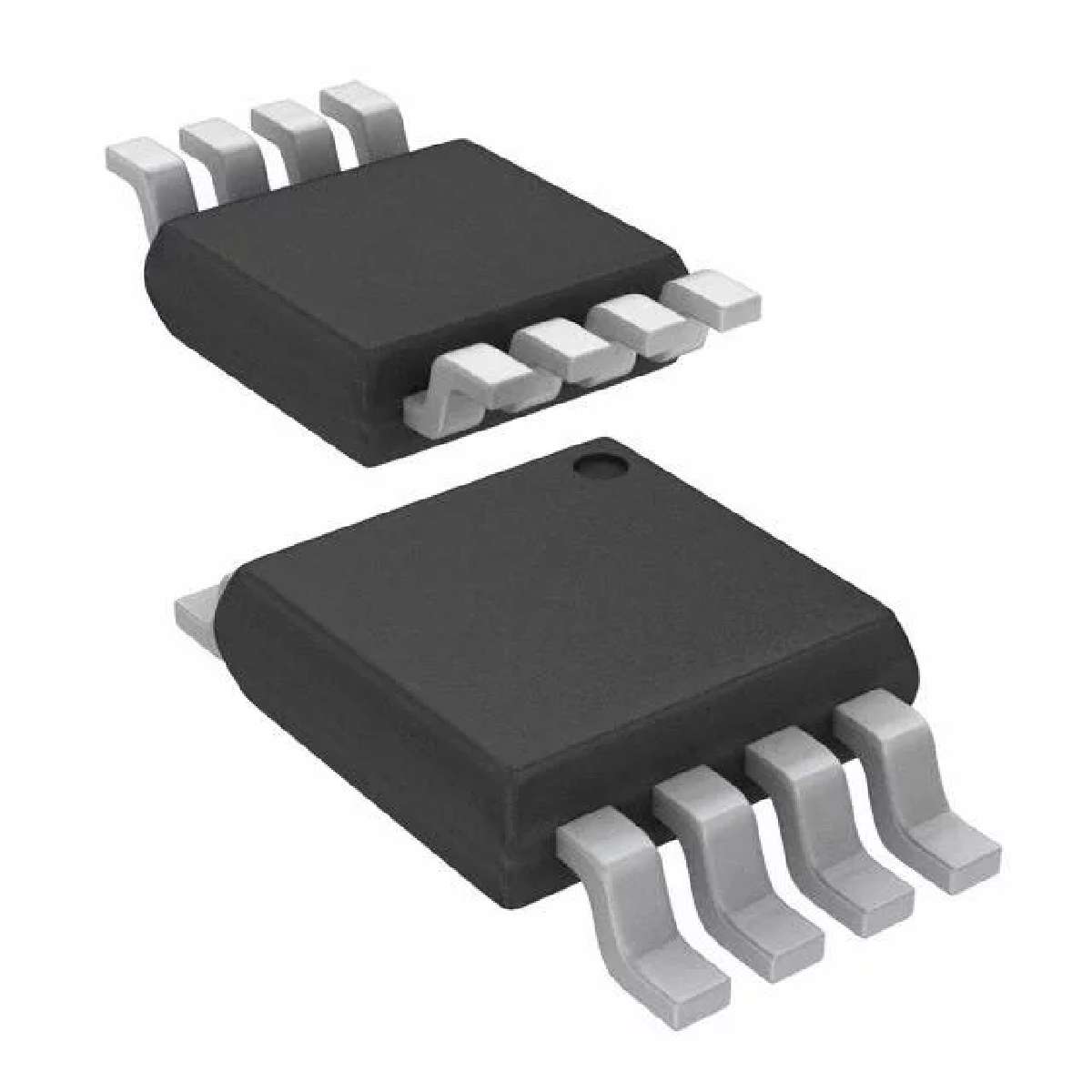

封装 VSSOP-8
长度 3 mm
宽度 3 mm
高度 0.95 mm
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMV393IDGKRG4 TI 德州仪器 | 当前型号 | 当前型号 |
LMV393ID 德州仪器 | 完全替代 | LMV393IDGKRG4和LMV393ID的区别 |
LMV393IDDUR 德州仪器 | 完全替代 | LMV393IDGKRG4和LMV393IDDUR的区别 |
LMV393IDR 德州仪器 | 类似代替 | LMV393IDGKRG4和LMV393IDR的区别 |
