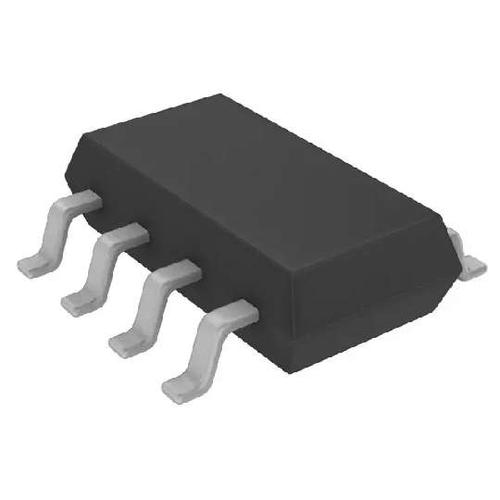

LTC2631AHTS8-LM12#TRMPBF

LINEAR TECHNOLOGY  LTC2631AHTS8-LM12#TRMPBF  数模转换器, 12 bit, 串行, 2.7V 至 5.5V, TSOT-23, 8 引脚

The is a 12-bit voltage-output Digital-to-analog Converter DAC with an integrated, high accuracy, low-drift reference. It has a rail-to-rail output buffer that is guaranteed monotonic. The LTC2631-L has a full-scale output of 2.5V and operates from a single 2.7 to 5.5V supply. The DAC can also operate in external reference mode, in which a voltage supplied to the REF pin sets the full-scale output. The LTC2631 DAC uses a 2-wire, I²C-compatible serial interface. The LTC2631 operates in both the standard mode and the fast mode. The LTC2631 incorporates a power-on reset circuit.

.

Guaranteed monotonic over temperature

.

Power down to 1.8µA maximum

.

Power-on reset to mid-scale

.

Double-buffered data latches
