LM317 线性电压调节器,ON Semiconductor**ON Semiconductor**** LM317** 系列是可调线性电压调节器。 3 端子正电压稳压器可提供 1.5A 及更高的输出电流,输出电压介于 1.2 至 37V 之间。 易于使用的 LM317 可调电压调节器可用于各种应用,如卡式调节,并可用作可编程输出调节器;通过在调整和输出之间连接一个固定电阻器,它可用作精密电流调节器。 输出电压范围:1.25 V 至 37 V 输出电流:1.5 A 短路电流限制、热保护和安全区域补偿 浮动操作,用于高电压应用 ### 线性电压调节器,On Semiconductor
LM317 线性稳压器,
**ON Semiconductor LM317** 系列是可调线性稳压器。 3 端子正电压稳压器可提供 1.5A 及更高的输出电流,输出电压介于 1.2 至 37V 之间。 易于使用的 LM317 可调稳压器可用于各种应用,如卡式调节,并可用作可编程输出稳压器;通过在调整和输出之间连接一个固定电阻器,它可用作精密电流稳压器。
输出电压范围:1.25 V 至 37 V
输出电流:1.5 A
短路电流限制、热保护和安全区域补偿
浮动操作,用于高电压应用
### 线性稳压器,On Semiconductor
立创商城:
正 Vin=40V Vout=1.2V~37V 100mA
得捷:
IC REG LIN POS ADJ 100MA 8SOIC
欧时:

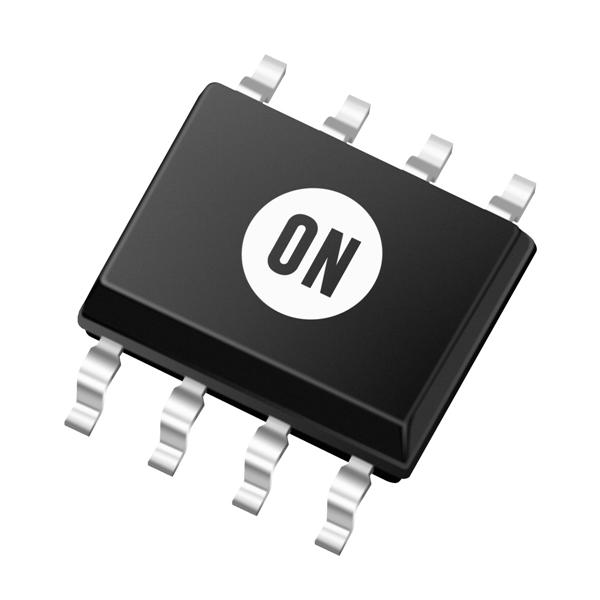

ON Semiconductor LM317 系列 LM317LDR2G 线性稳压器, 1.2 → 37 V输出, ±4%精确度 可调
贸泽:
线性稳压器 100mA ADJ 1.2-37V Positive
e络盟:
线性稳压器
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO LM317LDR2G linear regulator from ON Semiconductor. It has an overall accuracy of ±4 %. This voltage regulation device&s;s single output can produce a current up to 0.1Min A. With a voltage no larger than 40 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 1.2 to 37 V, this is power management at its best. Users like the load regulation of 0.5% and line regulation of 0.04%/V. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has an operating temperature range of 0 °C to 125 °C.
Allied Electronics:
Voltage Regulator Adj 1.2-37V 0.1A SOIC8
Jameco:
Low Drop Out LDO Regulator Position 1.2 Volt to 37 Volt 0.1A 8-Pin SOIC N
安富利:
Standard Regulator Pos 1.2V to 37V 0.1A 8-Pin SOIC N T/R
富昌:
LM317L Series 100mA Adjustable Surface Mount Voltage Regulator - SOIC-8
Chip1Stop:
Standard Regulator Pos 1.2V to 37V 0.1A 8-Pin SOIC N T/R
TME:
Voltage regulator; linear, adjustable; 1.2÷37V; 0.1A; SO8; SMD
Verical:
Standard Regulator Pos 1.2V to 37V 0.1A 8-Pin SOIC N T/R
Newark:
Linear Voltage Regulator, Adjustable, 1.2V to 40V input, 1.2V to 37V/100 mA out, SOIC-8
力源芯城:
可调整的3端正电压稳压器
DeviceMart:
IC REG LDO ADJ .1A 8SOIC
Win Source:
IC REG LINEAR ADJ 0.1A 8SOIC
工作电压 3V ~ 40V
无卤素状态 Halogen Free
输出接口数 1
输入电压DC 40.0V max
输出电压 1.2V ~ 37V
输出电流 100 mA
供电电流 10 mA
针脚数 8
极性 P-Channel
输入电压Max 40 V
输入电压Min 1.2 V
输出电压Max 37 V
输出电压Min 1.2 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±4 %
输出通道数 1
输入电压 ≤40 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 ????, 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM317LDR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LM317LBDG 安森美 | 完全替代 | LM317LDR2G和LM317LBDG的区别 |
LM317LDR2 安森美 | 完全替代 | LM317LDR2G和LM317LDR2的区别 |
LM317LBDR2G 安森美 | 类似代替 | LM317LDR2G和LM317LBDR2G的区别 |
