LINEAR TECHNOLOGY LTC1861CMS#PBF 模数转换器, 12 bit, 250 kSPS, 单, 4.75 V, 5.25 V, MSOP
Do you need to perform calculations on real world physical signals such as light or temperature? Then use this ADC from to convert those analog signals to digital data that a computer can read! Its maximum power dissipation is 400 mW. This device"s digital interface is serial 3-wire, spi, microwire. This device is based on SAR architecture. It has a single-ended and differential input signal. This ADC has a resolution of 12bit. This ADC has an input voltage of 5 V. This ADC has a minimum operating temperature of 0 °C and a maximum of 70 °C.
数字逻辑电平 SAR
电源电压DC 4.75V min
供电电流 850 µA
电路数 1
通道数 2
针脚数 10
位数 12
耗散功率 1.25 mW
采样率 250 ksps
模数转换数ADC 1
输入数 2
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 400 mW
输入通道数 1, 2
电源电压Max 5.25 V
电源电压Min 4.75 V
输入电压 5 V
安装方式 Surface Mount
引脚数 10

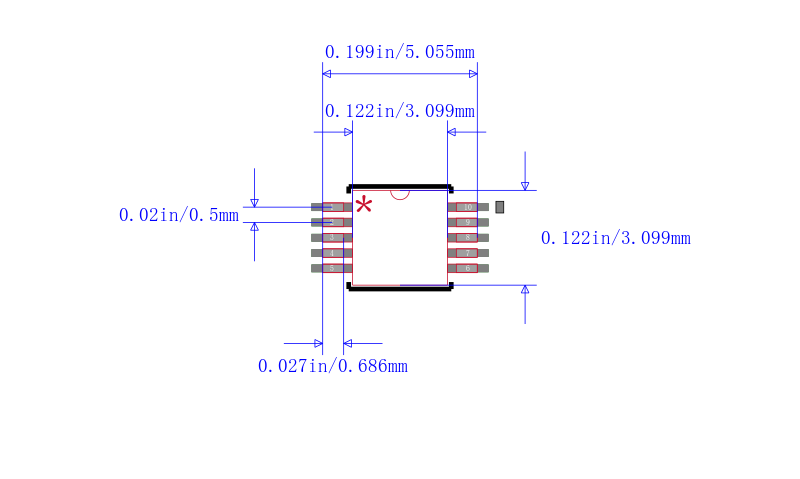

封装 MSOP-10
封装 MSOP-10
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC1861CMS#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1861CMS#TRPBF 凌力尔特 | 完全替代 | LTC1861CMS#PBF和LTC1861CMS#TRPBF的区别 |
LTC1865ACMS#PBF 凌力尔特 | 类似代替 | LTC1861CMS#PBF和LTC1865ACMS#PBF的区别 |
ADS8509IDW 德州仪器 | 功能相似 | LTC1861CMS#PBF和ADS8509IDW的区别 |
