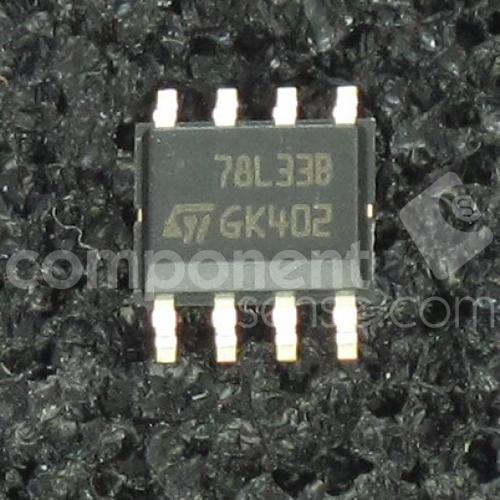

STMICROELECTRONICS L78L33ABD 线性稳压器直流/直流转换器, 8.3 V, 30 V, 3.3 V, 100 mA, SOIC, 8 引脚
This three-terminal positive regulator employs internal current limiting and thermal shutdown, making it essentially indestructible. If adequate heat-sink is provided, it can deliver up to 100 mA output current. It is intended as fixed voltage regulator in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, it can be used with power pass elements to make high-current voltage regulators.
- .
- Output current up to 100 mA
- .
- Thermal overload protection
- .
- Short-circuit protection
- .
- No external components are required
输出接口数 1
输入电压DC 30.0V max
输出电压 3.3 V
输出电流 100 mA
针脚数 8
跌落电压 1.7V @40mA
输入电压Max 30 V
输入电压Min 8.3 V
输出电压Max 3.3 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±8 %
电源电压Max 20 V
电源电压Min 5.3 V
输入电压 30 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
L78L33ABD ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L78L33ABD-TR 意法半导体 | 完全替代 | L78L33ABD和L78L33ABD-TR的区别 |
L78L33ACD 意法半导体 | 完全替代 | L78L33ABD和L78L33ACD的区别 |
L78L33ACD13TR 意法半导体 | 类似代替 | L78L33ABD和L78L33ACD13TR的区别 |
