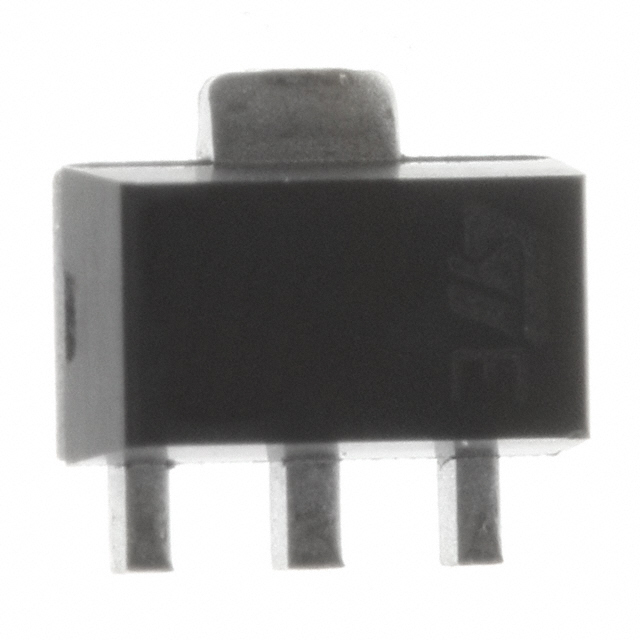

STMICROELECTRONICS L78L33ABUTR 线性稳压器, 固定, 8.3V至30V输入, 3.3V和0.1A输出, SOT-89-3
线性稳压器,100mA,STMicroelectronics
L78L 系列三端子正调节器嵌入内部电流限制和热关闭。 提供充足的散热片,可提供高达 100mA 的输出电流。
欧时:
### 线性稳压器,100mA,STMicroelectronicsL78L 系列三端子正调节器嵌入内部电流限制和热关闭。 提供充足的散热片,可提供高达 100mA 的输出电流。### 线性电压稳压器,STMicroelectronics
得捷:
IC REG LINEAR 3.3V 100MA SOT89-3
立创商城:
正 Vin=30V Vout=3.3V 100mA 49dB@120Hz
e络盟:
线性稳压器, 固定, 8.3V至30V输入, 3.3V和0.1A输出, SOT-89-3
艾睿:
Keep calm and stay stable by implementing this standard L78L33ABUTR linear regulator developed by STMicroelectronics. Its typical dropout voltage at current is 1.7@40mA V. This voltage regulation device&s;s single output can produce a current up to 0.1 A. With a voltage no larger than 30 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. At a load regulation of 60mV and line regulation of 150mV a constant current can be produced at the output of your circuit. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
Standard Regulator Pos 3.3V 0.1A 4-Pin3+Tab SOT-89 T/R
Chip1Stop:
Standard Regulator Pos 3.3V 0.1A 4-Pin3+Tab SOT-89 T/R
TME:
Voltage regulator; linear, fixed; 3.3V; 0.1A; SOT89; SMD; -40÷125°C
Verical:
Standard Regulator Pos 3.3V 0.1A 4-Pin3+Tab SOT-89 T/R
DeviceMart:
IC REG LDO 3.3V .1A SOT-89
Win Source:
IC REG LDO 3.3V 0.1A SOT89-3
输出接口数 1
输入电压DC 30.0V max
输出电压 3.3 V
输出电流 100 mA
供电电流 5.5mA ~ 6mA
针脚数 3
静态电流 6 mA
跌落电压 1.7V @40mA
输入电压Max 30 V
输入电压Min 8.3 V
输出电压Min 3.3 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 30 V
安装方式 Surface Mount
引脚数 3
封装 SOT-89-3
长度 4.6 mm
宽度 2.6 mm
高度 1.6 mm
封装 SOT-89-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L78L33ABUTR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L78L33ABU 意法半导体 | 完全替代 | L78L33ABUTR和L78L33ABU的区别 |
L78L33ACUTR 意法半导体 | 类似代替 | L78L33ABUTR和L78L33ACUTR的区别 |
L78L33ABD-TR 意法半导体 | 功能相似 | L78L33ABUTR和L78L33ABD-TR的区别 |
