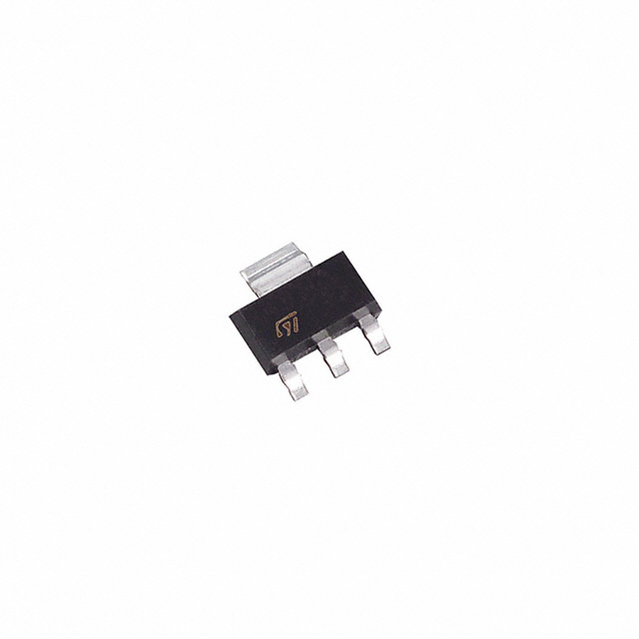

LD1117S25CTR

STMICROELECTRONICS  LD1117S25CTR  稳压器, 固定LDO, 15V输入, 1.1V压差, 2.5V/800mA输出, SOT-223-3

线性稳压器，800mA，STMicroelectronics

### 线性电压稳压器，STMicroelectronics

欧时:
STMicroelectronics LD1117S25CTR LDO 稳压器, 2.5 V输出, 1.3A最大输出, ±1%精确度, 3+Tab引脚 SOT-223封装

得捷:
IC REG LINEAR 2.5V 800MA SOT223

立创商城:
LD1117S25CTR

贸泽:
LDO Voltage Regulators 2.5V 0.8A Positive

艾睿:
Stable power is ideal for better processing this LDO LD1117S25CTR linear regulator developed by STMicroelectronics will help do so. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 1@100mA|1.05@500mA|1.1@800mA V. This device has a maximum power dissipation of 12000 mW. This voltage regulation device&s;s single output can produce a current up to 1.3 A. The best way to provide power to your application is by using this, which needs a voltage lower than 15 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. At a load regulation of 10mV and line regulation of 6mV a constant current can be produced at the output of your circuit. Its maximum power dissipation is 12000 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 1.1@100mA|1.15@500mA|1.2@800mA V.

安富利:
LDO Regulator Pos 2.5V 1.3A 4-Pin3+Tab SOT-223 T/R

Chip1Stop:
LDO Regulator Pos 2.5V 1.3A 4-Pin3+Tab SOT-223 T/R

Verical:
LDO Regulator Pos 2.5V 1.3A 4-Pin3+Tab SOT-223 T/R

Newark:
# STMICROELECTRONICS  LD1117S25CTR  Fixed LDO Voltage Regulator, 15V in, 1.1V Dropout, 2.5V/800mA out, SOT-223-3

儒卓力:
**LDO.VREG POS 2,5V 0,8A SOT223 **

DeviceMart:
IC REG LDO 2.5V .95A SOT-223

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 800mA SOT-223
