LTC2627IDE#PBF

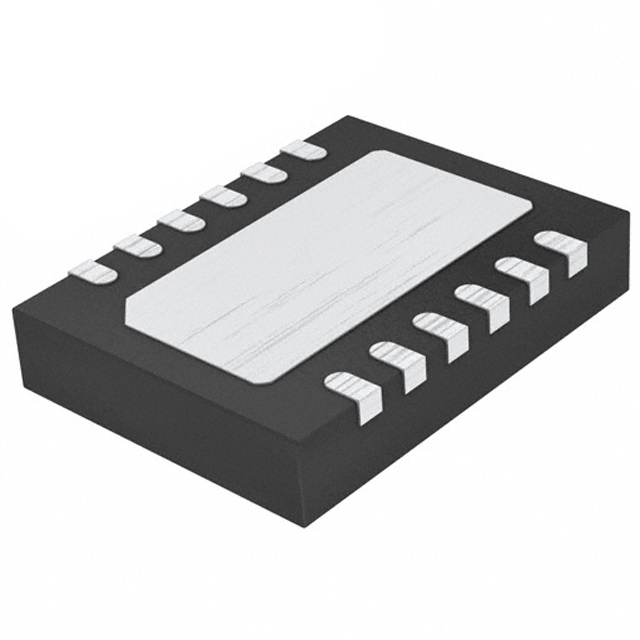

LINEAR TECHNOLOGY  LTC2627IDE#PBF  数模转换器, 12 bit, 串行, 2.7V 至 5.5V, DFN, 12 引脚

The is a dual 12-bit rail-to-rail voltage output Digital-to-analog Converter DAC has built-in high performance output buffers and is guaranteed monotonic. This part establish new board-density benchmarks for 16 and 14-bit DAC and advance performance standards for output drive and load regulation in single-supply, voltage-output DAC. The part uses a 2-wire, I²C compatible serial interface. The LTC2627 operates in both the standard mode and the fast mode. An asynchronous DAC update pin LDAC is also included. The LTC2627 incorporates a power-on reset circuit. During power-up, the voltage outputs rise less than 10mV above zero scale and after power-up, it stay at zero scale until a valid write and update take place.

.

Guaranteed monotonic over temperature

.

Power-down to 1µA, maximum

.

Double-buffered data latches

.

Pin-compatible
