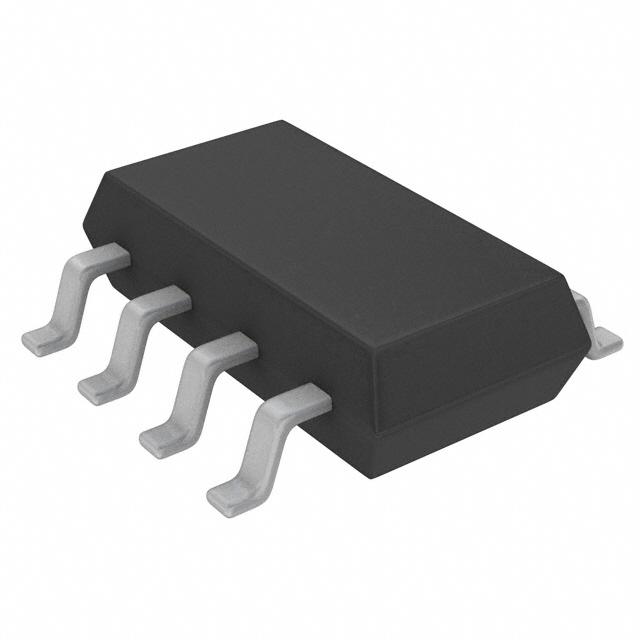

LINEAR TECHNOLOGY LTC2313ITS8-12#TRMPBF 模数转换器, 12 bit, 2.5 MSPS, 单, 2.7 V, 5.25 V, TSOT-23
The is a 12-bit serial sampling Analog-to-digital Converter ADC that draws only 5mA from a single 3/5V supply. The ADC contains an integrated low drift reference and reference buffer providing a low cost, high performance and space saving solution. The ADC achieves outstanding AC performance of 72.6dB SINAD and -84dB THD while sampling at 2.5Msps. The extremely high sample rate-to-power ratio makes the ADC ideal for compact, low power, high speed systems. The supply current decreases at lower sampling rates as the device automatically enters nap mode after conversions. It has a high speed SPI-compatible serial interface that supports 1.8/2.5/3/5V logic. The fast 2.5Msps throughput with no cycle latency makes the ADC ideally suited for a wide variety of high speed applications.
电源电压DC 2.70V min
供电电流 5.00 mA
针脚数 8
位数 12
采样率 2.5 Msps
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.25 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 8
封装 TSOT-23-8
封装 TSOT-23-8
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Power Management, Medical, 通信与网络, Automation & Process Control, Communications & Networking, 车用, 医用, Imaging, Video & Vision, 视频和目视, 电源管理, 便携式器材, Automotive, 成像, 视频和目视, Portable Devices, 自动化与过程控制, 成像
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC2313ITS8-12#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2312CTS8-12#TRMPBF 凌力尔特 | 类似代替 | LTC2313ITS8-12#TRMPBF和LTC2312CTS8-12#TRMPBF的区别 |
LTC2315ITS8-12#TRMPBF 凌力尔特 | 类似代替 | LTC2313ITS8-12#TRMPBF和LTC2315ITS8-12#TRMPBF的区别 |
LTC2315ITS8-12#PBF 凌力尔特 | 类似代替 | LTC2313ITS8-12#TRMPBF和LTC2315ITS8-12#PBF的区别 |
