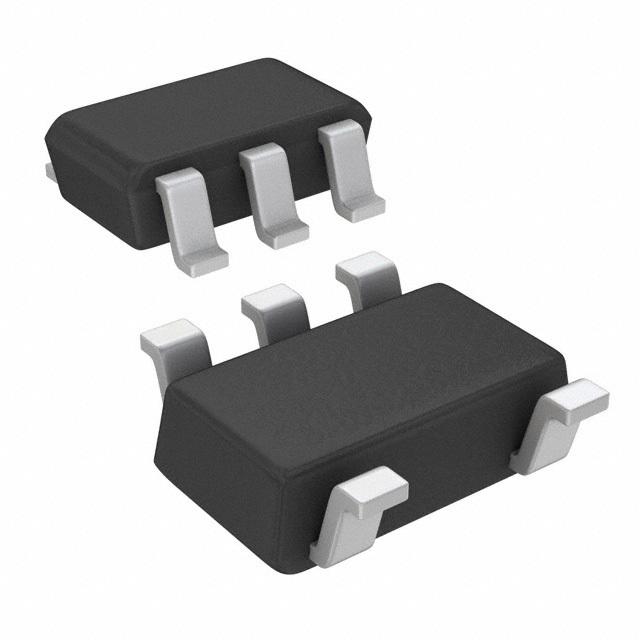

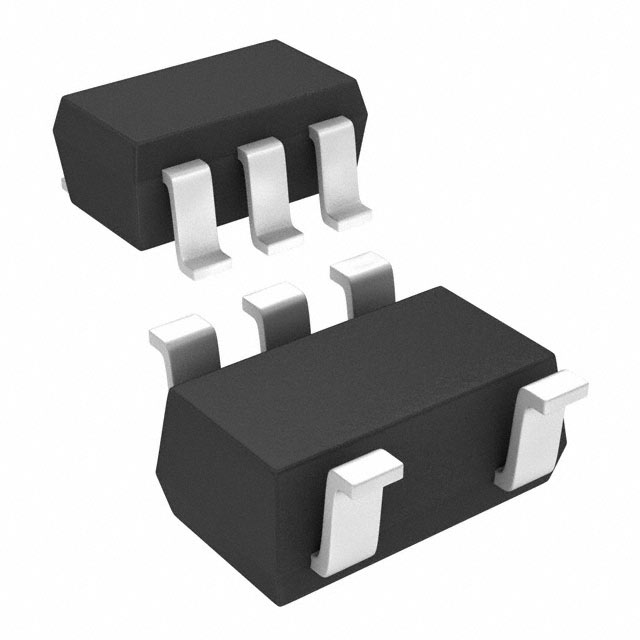

LDK120M30R

LDK120 系列 200 mA 3 V 固定输出 低噪声 LDO 稳压器 - SOT-23-5

PMIC - 稳压器 - 线性 正 固定 输出 200mA SOT-23-5

得捷:
IC REG LINEAR 3V 200MA SOT23-5

立创商城:
LDK120M30R

贸泽:
低压差稳压器 200 mA low quiescent Very low noise LDO

艾睿:
This LDO LDK120M30R linear regulator from STMicroelectronics gives you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.1@100mA|0.15@200mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 1.9 V that does not exceed 5.5 V. With a fixed output that has a voltage of 3 V, this is power management at its best. By operating at a load regulation of 0.006%/mATyp and line regulation of 0.05%/VTyp you can provide a constant voltage at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. The maximum dropout voltage is 0.3@200mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.

富昌:
LDK120 Series 200 mA 3 V Fixed Output Low Noise LDO Regulator - SOT-23-5

Chip1Stop:
LDO Regulator Pos 3V 0.2A 5-Pin SOT-23 T/R

TME:
Voltage regulator; LDO, linear, fixed; 3V; 0.2A; SOT23-5; SMD

Verical:
LDO Regulator Pos 3V 0.2A 5-Pin SOT-23 T/R

儒卓力:
**LDO VREG 3.0V 0.2A SOT23 5L **

DeviceMart:
IC REG LDO 3V .2A SOT
