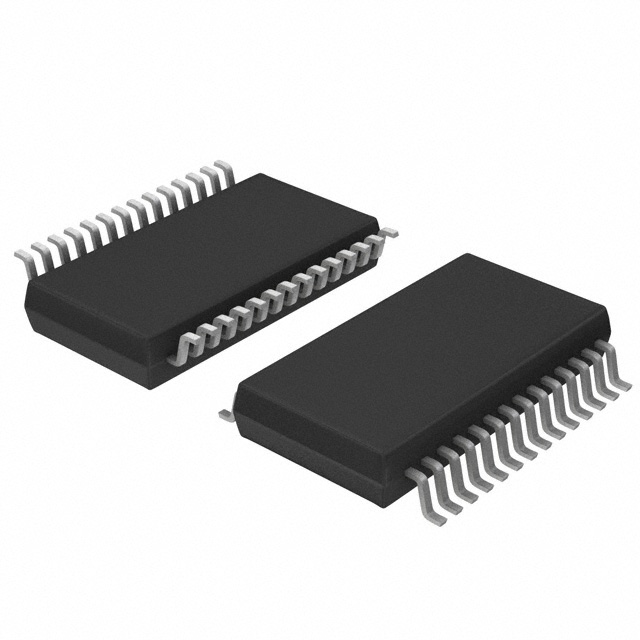

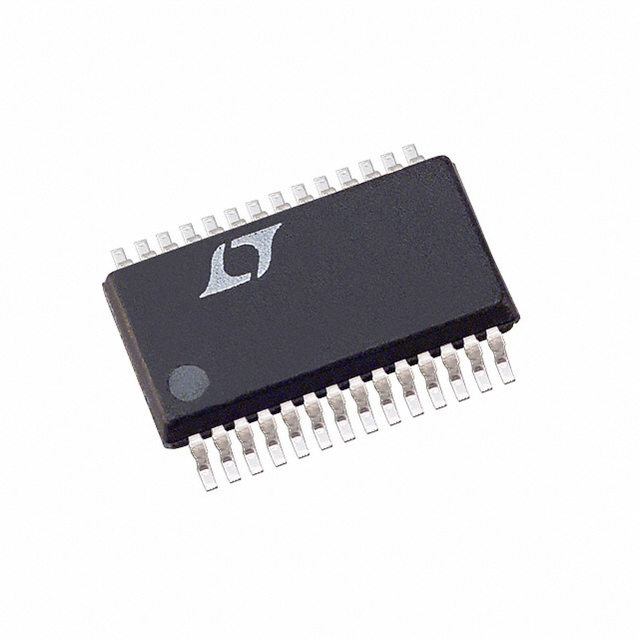

LINEAR TECHNOLOGY LTC2424CG#PBF 模数转换器, 20 bit, 100 SPS, 单, 2.7 V, 5.5 V, SSOP
Do you need to perform calculations on real world physical signals such as light or temperature? Then use this ADC from to convert those analog signals to digital data that a computer can read! This device"s digital interface is serial 4-wire, spi, microwire. This device is based on Delta-Sigma architecture. It has a single-ended input signal. This ADC has a resolution of 20bit. This ADC has an input voltage of 6.188 V. This ADC has a temperature range of 0 °C to 70 °C.
电源电压DC 2.70V min
供电电流 200 µA
通道数 4
针脚数 28
位数 20
采样率 100 SPS
模数转换数ADC 1
输入数 4
工作温度Max 70 ℃
工作温度Min 0 ℃
输入通道数 4
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
输入电压 6.188 V
安装方式 Surface Mount
引脚数 28
封装 SSOP-28
封装 SSOP-28
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC2424CG#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2424CG#TRPBF 凌力尔特 | 完全替代 | LTC2424CG#PBF和LTC2424CG#TRPBF的区别 |
