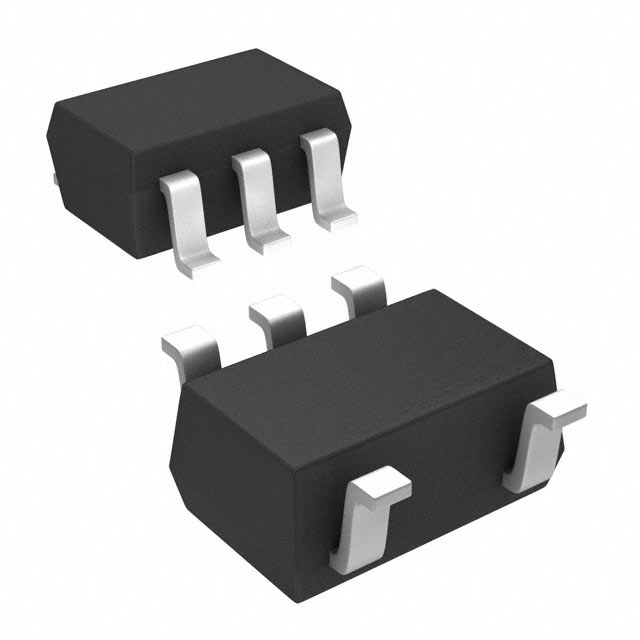

LDK120C 系列 可调输出 200 mA 低噪声 低压差 稳压器 - SOT-323-5
PMIC - 稳压器 - 线性 正 可调式 1 输出 200mA SOT-323-5
立创商城:
LDK120C-R
得捷:
IC REG LIN POS ADJ 200MA SOT323
艾睿:
This LDO LDK120C-R linear regulator from STMicroelectronics is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 0.1@100mA|0.15@200mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. Use this part at voltages between 1.9 V and 5.5 V. With an adjustable output that has a voltage of 0.8Min V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.006%/mATyp and line regulation of 0.05%/VTyp. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.3@200mA V.
安富利:
LDO Regulator Pos 0.8V 0.2A 5-Pin SOT-323 T/R
富昌:
LDF120 系列 200 mA 0.8 至 3.5 V 可调输出 表面贴装 VLDO 稳压器 SOT-323-5
Chip1Stop:
LDO Regulator Pos 0.8V 0.2A 5-Pin SOT-323 T/R
TME:
Voltage regulator; LDO, linear, adjustable; 0.8÷6.85V; 0.2A; SMD
Verical:
LDO Regulator Pos 0.8V 0.2A 5-Pin SOT-323 T/R
儒卓力:
**LDO.VREG ADJ 0,2A SOT323 **
DeviceMart:
IC REG LDO ADJ .2A SOT
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 5.35 V 200mA SOT-323-5
输出接口数 1
输出电压 0.8V ~ 5.35V
输出电流 200 mA
供电电流 60µA ~ 100µA
静态电流 100 µA
跌落电压 100 mV
输入电压Max 5.5 V
输入电压Min 1.9 V
输出电压Max 5.2 V
输出电压Min 0.8 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.5 V
安装方式 Surface Mount
引脚数 5
封装 SOT-323-5
封装 SOT-323-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
