模数转换器 - ADC 12-bit, 10Msps Low Power ADC
Converting digital signals from analog is easy with "s ADC. Its maximum power dissipation is 69 mW. This device"s digital interface is parallel. It has a single-ended and differential input signal. This device is based on Pipelined architecture. This ADC has a resolution of 12bit. This ADC has an input voltage of ±0.5V/±1 V. This ADC has a temperature range of 0 °C to 70 °C.
电源电压DC 2.70V min
供电电流 20.0 mA
位数 12
耗散功率 60 mW
采样率 10 Msps
模数转换数ADC 1
输入数 1
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 69 mW
输入通道数 1
电源电压Max 3.4 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 32

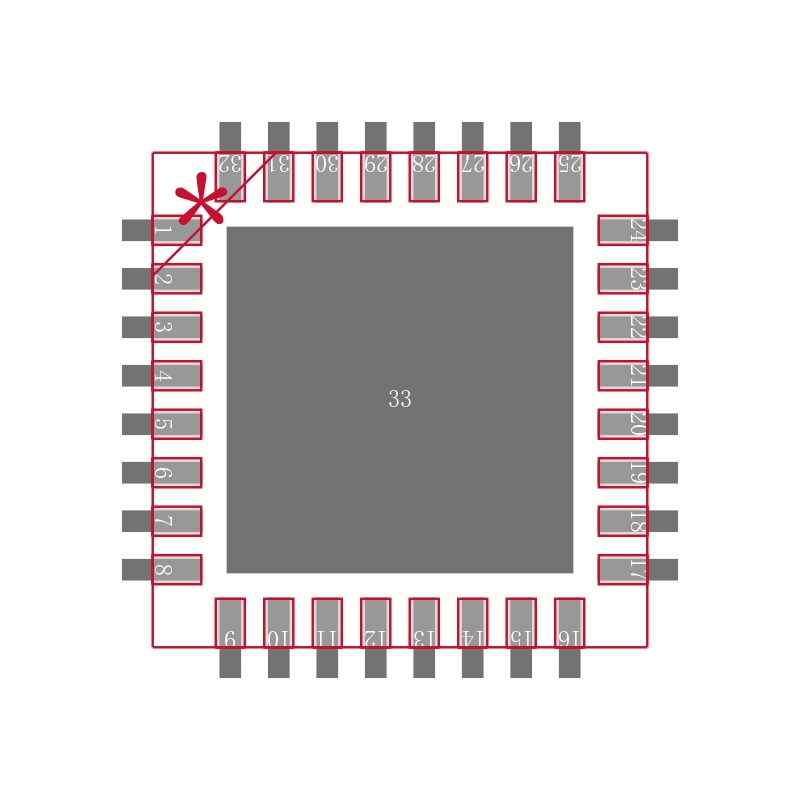

封装 QFN-32
封装 QFN-32
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 PB free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC2225CUH#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2225CUH#TRPBF 凌力尔特 | 完全替代 | LTC2225CUH#PBF和LTC2225CUH#TRPBF的区别 |
LTC2249IUH#PBF 凌力尔特 | 类似代替 | LTC2225CUH#PBF和LTC2249IUH#PBF的区别 |
LTC2250IUH#PBF 凌力尔特 | 类似代替 | LTC2225CUH#PBF和LTC2250IUH#PBF的区别 |
